How To: Remove Ghosts using hub tools or a UZB Stick

The information below can help you resolve problems w/your Z-Wave mesh caused by Z-Wave device "ghosts." Review below for detailed information on the following:

  1. What are Z-Wave Ghosts and how are they created?
  2. Avoid creating ghosts
  3. Remove ghosts using built-in tools on the Hubitat hub
  4. How to remove them using a USB Z-Wave stick (AKA UZB Stick). A link to a PDF guide to remove ghosts using a Z-Wave UZB stick is provided below. (Created w/extensive collaboration/support from the amazing @erktrek.)

Recommended approach to remove ghosts:

  1. Try the built-in Hubitat hub ghost removal tools - most ghosts should be able to be removed using those tools.
  2. If you're unable to remove your ghosts w/the hub's built-in tools, follow the instructions in the Ghost Removal PDF (link at the end of this post) to remove ghosts using a free software download and a Z-Wave UZB stick (which you will need to purchase).

1. What are Z-Wave Ghost devices and how are they created?

Details

Z-Wave "Ghosts" are Z-Wave devices that have not successfully joined your mesh during pairing, leaving an entry in your hub's Z-Wave device table that is incomplete. In some cases multiple failed attempts to add a single device can result in multiple ghosts from each failed/partial pairing.

Note that having even a single ghost in your Z-Wave mesh can cause severe problems w/the responsiveness of some or all of your Z-Wave devices, making them slow or non-responsive.

The easisest way to identify a ghost is by looking at the Z-Wave Details page on your hub, and look for devices that do not show any routing in the "Route" column of the Z-Wave Details page. Problems usually show up quite soon after a Ghost appears, so Ghosts are usually one of the most recently added devices and are at or near the bottom of your Z-Wave Details list (most recently-added devices are at the bottom).

Below is a normal device in the Z-Wave Details page, showing normal routing and connection speed info in the Route column. Route: 01 -> 0A. Speed: 40kbps. Routing may be direct to the hub in this case (01 is the Hub, 0A is the device), or a device may route through one or more other devices to connect to the hub.

Ghost devices typically appear in the Z-Wave Details table w/no routing information in the Route column - looking something like below. Note that the last field in the row below is completely empty, shows no routing for the device. Below are a couple of examples:

Important Note on Identifying Ghosts:

  • Hubitat Migration: If you have recently completed the Hubitat migrate process to move from an existing to a new hub, it's normal/OK if all or some or all of the Z-Wave routes are empty initially after the migration. As a part of the migration Z-Wave route cache may be cleared and it may take up a few days to fill in. In that case, migration, you should give the hub time to fill in the mssing route info before assuming you have ghosts. Migration will not remove any existing ghosts that were on the hub that you migrated from. Note that C4 and C5 hubs based on older Z-Wave chips do not display ghosts, so you may find what look like "new" ghosts showing up on the C7 or C8 after migration, but the ghosts were there on the older hub, they just were not visible.

2. How can I avoid/minimize creating ghosts? Courtesy of @rlithgow1:

Details

If you have a failed Z-Wave pairing, STOP! Check your Settings>Z-Wave details page. If a ghost was created (you will see nothing in the routing column), it needs to be removed first. If you don't remove it you will start having problems with your mesh including pairing new devices. After removing the ghost, factory reset the device and attempt to pair it again. Rinse and repeat. This is one of the biggest keys to having a healthy mesh.

3. How to use the Hubitat hub's built-in ghost removal tools Thanks to @jtp10181

Details

Simple first steps - try these first

  1. If a Discover button appears for a partially included device, selecting that button can allow a device to successfully complete joining the Z-Wave mesh.
  2. Shut down the hub and restart it to force restarting of the Z-Wave radio - this can help w/ghost issues:
    -- a. Shut down your hub from the Settings menu.
    -- b. Then pull the USB power plug (recommended to do at the wall connection, not at the hub as the hub connection can be a little fragile, at least on some C-7 hubs) to completely remove power from your hub after it's shut down.
    -- c. Wait 30s
    -- d. Plug the hub in again.

Using the hub's built-in ghost removal tools
Below is a detailed summary from @jtp10181 of best way to use the hubs built-in ghost removal tools. Try these tools first before trying Ghost removal with a UZB stick:

  • Click Refresh on the device ONCE, wait for the page to refresh. The Remove button should then appear. Click Remove ONCE. Again, wait. May want to have logs open while doing this as well.

  • Sometimes it takes multiple tries of the Refresh button to get the Remove button to appear. Try to be patient and NOT click Refresh furiously. If you start getting "Zwave busy" error messages in your logs, power down and reboot again.

  • It is common for it to take multiple tries at the Refresh/Remove buttons to remove a ghost, give it at least five or six attempts before assuming it's not going to work. Shutting down/restarting between successful removals can also help.

  • From some anecdotal evidence, removal of a ghost device may be more successful if the device the ghost was created from is disconnected from power while you're trying to remove the ghost. If it's a plug, you can unplug it. If it's a switch and has an air-gap, pull the air gap. You can also flip a circuit breaker to temporarily remove power from a mains powered device. May not help, but an option you can consider.

If the above steps don't remove the ghost...

The hub may not be able to remove Ghosts that have too many existing neighbor nodes. You can use the "Hubitat Z-Wave Mesh Details" tool (available in Hubitat Package Manger) to easily identify the neighbors of your ghost device.

You can try the following steps before moving on to using a Z-Wave USB stick:

  • Install the Z-wave mesh tool [BETA] A Z-Wave Mesh Tool [C7 and 2.2.4+ Only] from Hubitat Package Manager and use the Mesh tool to identify the neighbor nodes that the ghost devices are hanging onto. Use the image expand arrow in to expand the ghost device row in the Mesh Details app to see the device's neighbors. See the "Neighbors" column in the example screen cap below:

If you exclude the neighbor nodes, then the ghost node should also be removable.

Steps:

  1. Create a virtual device for each neighbor.
    -- Add Device at top of Device page, choose "Virtual" device type, and choose virtual device types that match w/your actual devices.
  2. Use the Settings>Swap Apps Devices tool to swap out each neighbor w/a virtual device (this maintaings your automations using these devices)
  3. Exclude the neighbor devices
  4. Use the HE hub steps above to remove your ghost(s)
  5. Re-include the neighbor devices
  6. Use Swap App Devices again to swap the restored devices back into their automations, dashboards, etc.

4. How to remove ghosts using a Z-Wave UZB stick?

Details

If you still have Ghost(s) after trying the hub's built-in ghost removal tools, remove them by following the steps in the ghost removal guide PDF below:

Click here to download the Z-Wave UZB stick ghost removal guide: Ghost Removal - Who you gonna call?! (PDF format)

  • Important: If you end up needing to follow the steps in the Ghost Removal Guide PDF:
  1. You have to be logged into Simplicity Studio to complete the install of the Z-Wave tools add-on in Simplicity Studio.
  2. You can use any brand or Z-wave version (500, 700, 800) UZB Z-Wave stick
  3. If you have problems on Win 10 w/your UZB stick not being recognized, you may need to update your UZB stick driver from this post on SilLabs support.

Mac users: There is no Mac version of the PC Controller software, so you either have to have access to a Windows PC, or run PC Controller using Parallels or Bootcamp. One example below using Parallels:

Where can I find UZB sticks?

You can use any UZB stick you want to, below are a couple of options that have been popular w/Hubitat users:

Silicon Labs UZB stick - it's inexpensive and works well.

Zooz UZB stick - a good option and can be found on their web site and on Amazon.


Additional information about ghosts, UZB sticks, & Z-Wave

What about removing ghosts created by battery powered devices?

Details

USB Stick, PC Controller, Battery Devices refuse to play nice - #4 by jtp10181

Why doesn't Hubitat just fix this!?

Details

TL;DR: They can't - they are limited to the tools and options provided in the SilLabs Z-Wave SDK, as well as limitations imposed on them since they are a Z-Wave Certified hub.
Long answer: Ghost removal issues are due primarily to the Z-Wave SDK provided by SilLabs to all Z-Wave 700 & 800 hub vendors. That SDK (and its associated bugs/limitations and operating agreement that HE must conform to for certification) control/limit what the HE hub can do. HE has worked steadily to improve the Z-Wave experience in areas they have some control, but in the area of Ghost removal they're limited by what SilLabs provides in the SDK and the requirements of their Z-Wave certification. Software used in the ghost removal process detailed in the PDF here is not constrained in the same was as it is a developer tool and relies on a different SDK/process to remove ghosts, one that consumer-certified hubs like Hubitat cannot use.

SilLabs has continued to release Z-Wave updates and Hubitat integrates & releases those updates. Things are much better than they used to be, and should hopefully continue to improve over time.

The most important thing you can do to simplify issues related to ghosts is avoid them in the first place by creating a robust Z-Wave mesh, and checking each Z-Wave device on your Z-Wave Details page as you join it to ensure a proper pairing w/the hub.

Make sure you have applied any available Z-Wave FW updates

Details

If you see the highlighted button in the screen cap below at the top of your Z-Wave Details page that means there is a Z-Wave FW update available for your hub.

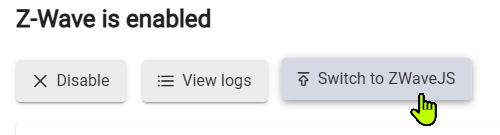

Click on the button to apply it. If you do not see the highlighted button your hub's Z-Wave firmware is already up to date. In some cases you may have to try the Z-Wave Firmware update a number of times for it to complete. If you are having problems applying a Z-Wave FW update: a) Shutdown the hub & pull power; b) Wait at least a minute; c) Plug in and boot up; d) go to the Z-Wave Details page and wait 10m; e) Try the update again. (Reason for the waiting: When you go to the Z-Wave Details page it kicks off a lot of internal messaging on the hub. Waiting 10m or more gives that time to settle down before you add the additional load of the Z-Wave FW update.)

More info on using the UZB stick and PC Controller to update Z-Wave device firmware

Details

@jtp10181 has created a topic on how to use a UZB stick and PC Controller app to update firmware on a Z-Wave device. Good news is using a UZB stick and PC Controller is generally faster than doing a Z-Wave device FW update using the HE FW updater. Check out his topic below:

[Guide] Firmware Update using PC Controller (Z-Wave Devices)

Feel free to share feedback and suggestions here on improviing the contents of this post and/or the ghost removal document.

UPDATE HISTORY

8/11/2023 Added links to Silicon Labs and Zooz UZB sticks (From post by jtp10181)

Update 7/19/23 Added note to try Classic Learn Mode when trying to join the UZB stick to the HE hub if NWI learn mode fails. Thanks to @dave17 for the feedback.

Update 7/15/23 Added link to @jtp10181 topic on updating FW using a UZB stick w/the PC Controller app.

Update 3/25/23 Added jtp10181's excellent summary of how to best use the hub's built-in ghost removal process.

Update 2/16/23 Added link to Aeotec Simplicity Studio install instructions for Simplicity Studio. Simpler and likely more reliable than me trying to keep up w/changes over time. Thanks to @denwood for the suggestion.

Update 1/1/2023 Added note that you need to be signed into Simplicity Studio to load the Z-Wave Tools, thanks to @Jlv03 for reporting that.

Update 10/14/2022: Added section to FAQ on how to roll back to a different UZB stick driver if you are getting the failed to update locally error when trying to update the Z-Wave Firmware on your UZB stick. Thanks to @rfg81 and erktrek.

Update 10/5/2022: Misc. clean-up.

Update 2/2/2022: Fixed the download link from Dropbox, thanks to info from @672southmain that the link was downloading the wrong version of the document (from back in July 2019!!). Apologies to anyone who got the old version...please re-download to get the current version.

Update 1/25/2022: Added csteele's very clear graphic to clarify steps when excluding the UZB stick.

Update 11/8/2021: Added some additional comments regarding the UZB stick inclusion not displaying security options, or providing the normal option to name the device.

Update 10/5/2021: Updated section in the FAQ on regional settings (aka Transmit Settings) to include info that 500 series UZB sticks have region set on the device in FW, only 700 series UZB sticks can change region in the PC Controller Transmit Settings. From bcopeland

Update 9/24/2021: Modified steps to join UZB stick to Hub - changed from using "Classic Learn Mode" to "Select Learn Mode>NWI" per bcopeland's suggestion. Also added a section in the FAQ on how to update FW on the SilLabs UZB stick.

Update: 7/10/2021: Updated info in the FAQ section of the document on using a UZB stick and PC Controller app to join devices to HE w/out security. Based on info provided by bcopeland.

Update 7/13/2021: Updated PDF creation process to maintain clickable links in the PDF. Re-download if you want a version where the links work! :slight_smile: Thanks to @eibyer for pointing this out.

Update 7/16/2021: Updated to include information on new UZB stick version that Mouser/Silicon Labs are shipping. Packaging may show the original UZB stick version (SLUSB001A) but the newer version (SLUSB7000A, rev 1 update of the original) is the currently shipping hardware. Thanks to @672southmain for pointing this out.

NOTE: If you run into an error "Can't open Xmodem session" while trying to use the PC Controller app to update the firmware on your UZB stick, try the step below:

Who you gonna call...yes, them:

List item

32 Likes

I only had one issue, and it was not to do with the Ghost removal part, just with the section regarding using the pc controller to add a new device.

I found that the new device added okay, but would not work on the hubitat until I did an "update" from the pc controller.

1 Like

Thanks for the comment. I had to reset my PC recently and haven't reinstalled the PC Controller app as I haven't had any ghost issues in quite a while.

Could you take a screen shot of the Update option showing where it is so folks using the doc can find it easily?

1 Like

I'm replying so I can find this guide in the future, just in case. I have a the zwave stick still in plastic during the early days of migrating to C7 but have not had the need to use it. Hopefully never but there's no telling when it comes statistics! lol

1 Like

you can always bookmark it :slight_smile:

1 Like

Thanks, update complete.

I have a ghost on my C-7 and cannot get the Z-Wave controller to pair with the Hub.

The PC Controller looks like it is picking up the devices.

Summary

Hubitat:
Inclusion finds a Z-Wave Device, then inclusion finishes and it sits at this. Any ideas??


Is this your first time using the zwave stick? If the zwave controller (stick) is picking up devices on HE does that not mean it is already paired?

1 Like

yes it is.

Found the problem. Somehow the Bedroom 2 light switch ID was wrong. Set it to the "ghost" ID and is now working fine. Thanks for responding..

1 Like

Are the links in the PDF clickable or is it getting stripped by my browser?

Hmmm...I thought they were clickable the last time I tried them - they are intended to be.

What browser are you using?

I'll download and see what happens when I try them.

EDIT: Yeah, I see, not clickable. I'll have to see if I can figure out why they are borked. I am creating this in Word and using the Print to PDF option in Windows...maybe that process is limited and links don't work. I'll play around w/it a bit. Thanks for the tip!

Used Chrome and Edge, tried it using Adobe Acrobat also, no click :frowning:

Correct! No one had mentioned this before for some reason...the process I was using (Print to PDF from Word) does not maintain clickable links for some reason.

The Word "Save As" to PDF format does retain clickable links - at least worked for me. Can you download it again to confirm?

3 Likes

Works now, thanks! I'm battling a ghost if you haven't figured out already lol. :ghost:

2 Likes

Show no mercy! :slightly_smiling_face:

2 Likes

BTW thank you so much for your excellent documentation. It made a huge difference to me and I bet to countless others.

2 Likes

Thanks...just trying to pay back a little to this group. I've gotten so much help, and folks have been very patient w/me. :slight_smile: And of course @erktrek was key in the development of the doc - he reviewed and corrected and improved the content significantly. Could not have done it w/out him.

4 Likes

Hey @danabw
I'm having a couple issues getting this to work. I have Win10 laptop and Aeotec Z-Stick Gen5 (not +).

Not sure if it matters, but when I insert it Windows gives it COM3 and uses Microsoft built-in driver. I was going to look for one in the path in the article, but it doesn't appear to exist in Simplicity Studio (V5). There's no BIN path at all.

That said, I AM able to discover the device in SS/PC Controller.

Next, I start inclusion on my HE (C5) and start Classic Learn Mode. In HE it finds a new device and goes to "initializing" and stays there - never give option to select a driver or finish. In PC Controller it appears connected - all my devices populate.

Next question - how do I identify ghosts? I must be looking in the wrong page - but I don't see a "Route" column anywhere - does it still exist?
