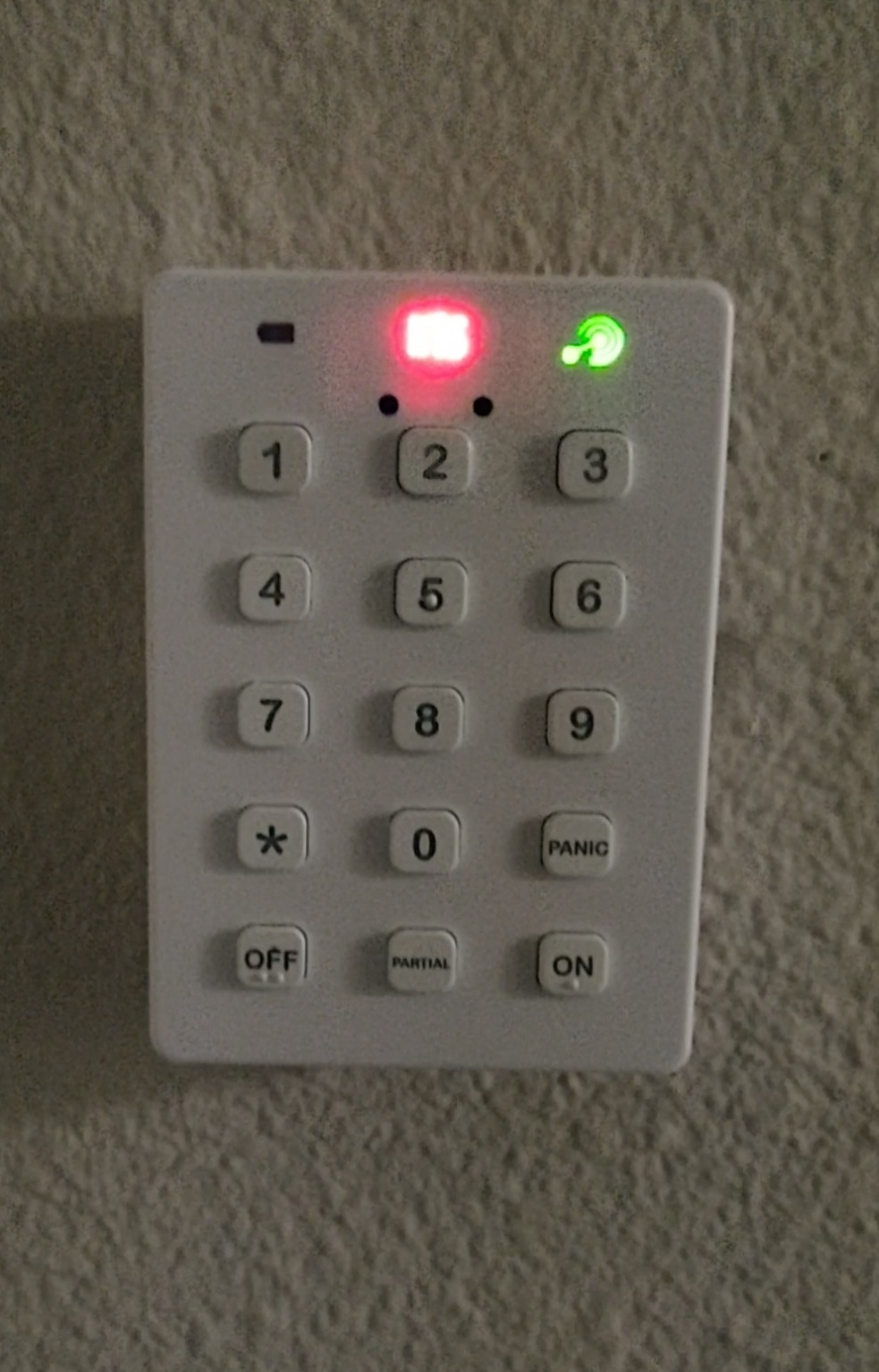

Got everything working great except for the keypad :man_facepalming:t5:

Is there any way to try to reverse engineer the smartthings custom handler from here?


#145

Try this, hope it helps


/**
 *  Centralite Keypad
 *
 *  Copyright 2015-2016 Mitch Pond, Zack Cornelius
 *
 *  Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except
 *  in compliance with the License. You may obtain a copy of the License at:
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 *  Unless required by applicable law or agreed to in writing, software distributed under the License is distributed
 *  on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License
 *  for the specific language governing permissions and limitations under the License.
 *
 */
metadata {
	definition (name: "Centralite Keypad", namespace: "mitchpond", author: "Mitch Pond") {

		capability "Battery"
		capability "Configuration"
        capability "Motion Sensor"
		capability "Sensor"
		capability "Temperature Measurement"
		capability "Refresh"
		capability "Lock Codes"
		capability "Tamper Alert"
		capability "Tone"
		capability "PushableButton"
        capability "Polling"
        capability "Contact Sensor"

		attribute "armMode", "String"
        attribute "lastUpdate", "String"

		command "setDisarmed"
		command "setArmedAway"
		command "setArmedStay"
		command "setArmedNight"
		command "setExitDelay", ['number']
		command "setEntryDelay", ['number']
		command "testCmd"
		command "sendInvalidKeycodeResponse"
		command "acknowledgeArmRequest"

		fingerprint endpointId: "01", profileId: "0104", deviceId: "0401", inClusters: "0000,0001,0003,0020,0402,0500,0B05", outClusters: "0019,0501", manufacturer: "CentraLite", model: "3400", deviceJoinName: "Xfinity 3400-X Keypad"
		fingerprint endpointId: "01", profileId: "0104", deviceId: "0401", inClusters: "0000,0001,0003,0020,0402,0500,0501,0B05,FC04", outClusters: "0019,0501", manufacturer: "CentraLite", model: "3405-L", deviceJoinName: "Iris 3405-L Keypad"
	}

	preferences{
		input ("tempOffset", "number", title: "Enter an offset to adjust the reported temperature",
				defaultValue: 0, displayDuringSetup: false)
		input ("beepLength", "number", title: "Enter length of beep in seconds",
				defaultValue: 1, displayDuringSetup: false)

        input ("motionTime", "number", title: "Time in seconds for Motion to become Inactive (Default:10, 0=disabled)",	defaultValue: 10, displayDuringSetup: false)
	}

    tiles (scale: 2) {
        multiAttributeTile(name: "keypad", type:"generic", width:6, height:4, canChangeIcon: true) {
            tileAttribute ("device.armMode", key: "PRIMARY_CONTROL") {
                attributeState("disarmed", label:'${currentValue}', icon:"st.Home.home2", backgroundColor:"#44b621")
                attributeState("armedStay", label:'ARMED/STAY', icon:"st.Home.home3", backgroundColor:"#ffa81e")
                attributeState("armedAway", label:'ARMED/AWAY', icon:"st.nest.nest-away", backgroundColor:"#d04e00")
            }
            tileAttribute("device.lastUpdate", key: "SECONDARY_CONTROL") {
                attributeState("default", label:'Updated: ${currentValue}')
            }
            /*
			tileAttribute("device.battery", key: "SECONDARY_CONTROL") {
				attributeState("default", label:'Battery: ${currentValue}%', unit:"%")
			}
			tileAttribute("device.battery", key: "VALUE_CONTROL") {
				attributeState "VALUE_UP", action: "refresh"
				attributeState "VALUE_DOWN", action: "refresh"
			}
			*/
            tileAttribute("device.temperature", key: "VALUE_CONTROL") {
                attributeState "VALUE_UP", action: "refresh"
                attributeState "VALUE_DOWN", action: "refresh"
            }
        }

        valueTile("temperature", "device.temperature", width: 2, height: 2) {
            state "temperature", label: '${currentValue}°',
                backgroundColors:[
                    [value: 31, color: "#153591"],
                    [value: 44, color: "#1e9cbb"],
                    [value: 59, color: "#90d2a7"],
                    [value: 74, color: "#44b621"],
                    [value: 84, color: "#f1d801"],
                    [value: 95, color: "#d04e00"],
                    [value: 96, color: "#bc2323"]
                ]
        }

        standardTile("motion", "device.motion", decoration: "flat", canChangeBackground: true, width: 2, height: 2) {
            state "active", label:'motion',icon:"st.motion.motion.active", backgroundColor:"#53a7c0"
            state "inactive", label:'no motion',icon:"st.motion.motion.inactive", backgroundColor:"#ffffff"
        }
        standardTile("tamper", "device.tamper", decoration: "flat", canChangeBackground: true, width: 2, height: 2) {
            state "clear", label: 'Tamper', icon:"st.motion.acceleration.inactive", backgroundColor: "#ffffff"
            state "detected",  label: 'Tamper', icon:"st.motion.acceleration.active", backgroundColor:"#cc5c5c"
        }
        standardTile("Panic", "device.contact", decoration: "flat", canChangeBackground: true, width: 2, height: 2) {
            state "open", label: 'Panic', icon:"st.security.alarm.alarm", backgroundColor: "#ffffff"
            state "closed",  label: 'Panic', icon:"st.security.alarm.clear", backgroundColor:"#bc2323"
        }

		standardTile("Mode", "device.armMode", decoration: "flat", canChangeBackground: true, width: 2, height: 2) {
            state "disarmed", label:'OFF', icon:"st.Home.home2", backgroundColor:"#44b621"
            state "armedStay", label:'OFF', icon:"st.Home.home3", backgroundColor:"#ffffff"
            state "armedAway", label:'OFF', icon:"st.net.nest-away", backgroundColor:"#ffffff"
        }

        standardTile("beep", "device.beep", decoration: "flat", width: 2, height: 2) {
            state "default", action:"tone.beep", icon:"st.secondary.beep", backgroundColor:"#ffffff"
        }
        valueTile("battery", "device.battery", decoration: "flat", width: 2, height: 2) {
            state "battery", label:'${currentValue}% battery', unit:""
        }
        standardTile("refresh", "device.refresh", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
            state "default", action:"refresh.refresh", icon:"st.secondary.refresh"
        }
        standardTile("configure", "device.configure", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
            state "default", action:"configuration.configure", icon:"st.secondary.configure"
        }
        valueTile("armMode", "device.armMode", decoration: "flat", width: 2, height: 2) {
            state "armMode", label: '${currentValue}'
        }

        main (["keypad"])
        details (["keypad","motion","tamper","Panic","Mode","beep","refresh","battery"])
    }
}

// parse events into attributes
def parse(String description) {
	log.debug "Parsing '${description}'";
	def results = [];

	//------Miscellaneous Zigbee message------//
	if (description?.startsWith('catchall:')) {

		//log.debug zigbee.parse(description);

		def message = zigbee.parse(description);

		//------Profile-wide command (rattr responses, errors, etc.)------//
		if (message?.isClusterSpecific == false) {
			//------Default response------//
			if (message?.command == 0x0B) {
				if (message?.data[1] == 0x81)
					log.error "Device: unrecognized command: "+description;
				else if (message?.data[1] == 0x80)
					log.error "Device: malformed command: "+description;
			}
			//------Read attributes responses------//
			else if (message?.command == 0x01) {
				if (message?.clusterId == 0x0402) {
					log.debug "Device: read attribute response: "+description;

					results = parseTempAttributeMsg(message)
				}}
			else
				log.debug "Unhandled profile-wide command: "+description;
		}
		//------Cluster specific commands------//
		else if (message?.isClusterSpecific) {
			//------IAS ACE------//
			if (message?.clusterId == 0x0501) {
				if (message?.command == 0x07) {
                	motionON()
				}
                else if (message?.command == 0x04) {
                	results = createEvent(name: "button", value: "pushed", data: [buttonNumber: 1], descriptionText: "$device.displayName panic button was pushed", isStateChange: true)
                    panicContact()
                }
				else if (message?.command == 0x00) {
					results = handleArmRequest(message)
					log.trace results
				}
			}
			else log.debug "Unhandled cluster-specific command: "+description
		}
	}
	//------IAS Zone Enroll request------//
	else if (description?.startsWith('enroll request')) {
		log.debug "Sending IAS enroll response..."
		results = zigbee.enrollResponse()
	}
	//------Read Attribute response------//
	else if (description?.startsWith('read attr -')) {
		results = parseReportAttributeMessage(description)
	}
	//------Temperature Report------//
	else if (description?.startsWith('temperature: ')) {
		log.debug "Got ST-style temperature report.."
		results = createEvent(getTemperatureResult(zigbee.parseHATemperatureValue(description, "temperature: ", getTemperatureScale())))
		log.debug results
	}
    else if (description?.startsWith('zone status ')) {
    	results = parseIasMessage(description)
    }
	return results
}


def configure() {
    log.debug "--- Configure Called"
    String hubZigbeeId = swapEndianHex(device.hub.zigbeeEui)
    def cmd = [
        //------IAS Zone/CIE setup------//
        "zcl global write 0x500 0x10 0xf0 {${hubZigbeeId}}", "delay 100",
        "send 0x${device.deviceNetworkId} 1 1", "delay 200",

        //------Set up binding------//
        "zdo bind 0x${device.deviceNetworkId} 1 1 0x500 {${device.zigbeeId}} {}", "delay 200",
        "zdo bind 0x${device.deviceNetworkId} 1 1 0x501 {${device.zigbeeId}} {}", "delay 200",

    ] +
    zigbee.configureReporting(1,0x20,0x20,3600,43200,0x01) +
    zigbee.configureReporting(0x0402,0x00,0x29,30,3600,0x0064)

    return cmd + refresh()
}

def poll() {
	refresh()
}

def refresh() {
	 return sendStatusToDevice() +
		zigbee.readAttribute(0x0001,0x20) +
		zigbee.readAttribute(0x0402,0x00)
}

private formatLocalTime(time, format = "EEE, MMM d yyyy @ h:mm a z") {
	if (time instanceof Long) {
    	time = new Date(time)
    }
	if (time instanceof String) {
    	//get UTC time
    	time = timeToday(time, location.timeZone)
    }
    if (!(time instanceof Date)) {
    	return null
    }
	def formatter = new java.text.SimpleDateFormat(format)
	formatter.setTimeZone(location.timeZone)
	return formatter.format(time)
}

private parseReportAttributeMessage(String description) {
	Map descMap = (description - "read attr - ").split(",").inject([:]) { map, param ->
		def nameAndValue = param.split(":")
		map += [(nameAndValue[0].trim()):nameAndValue[1].trim()]
	}
	//log.debug "Desc Map: $descMap"

	def results = []

	if (descMap.cluster == "0001" && descMap.attrId == "0020") {
		log.debug "Received battery level report"
		results = createEvent(getBatteryResult(Integer.parseInt(descMap.value, 16)))
	}
    else if (descMap.cluster == "0001" && descMap.attrId == "0034")
    {
    	log.debug "Received Battery Rated Voltage: ${descMap.value}"
    }
    else if (descMap.cluster == "0001" && descMap.attrId == "0036")
    {
    	log.debug "Received Battery Alarm Voltage: ${descMap.value}"
    }
	else if (descMap.cluster == "0402" && descMap.attrId == "0000") {
		def value = getTemperature(descMap.value)
		results = createEvent(getTemperatureResult(value))
	}

	return results
}

private parseTempAttributeMsg(message) {
	byte[] temp = message.data[-2..-1].reverse()
	createEvent(getTemperatureResult(getTemperature(temp.encodeHex() as String)))
}

private Map parseIasMessage(String description) {
    List parsedMsg = description.split(' ')
    String msgCode = parsedMsg[2]

    Map resultMap = [:]
    switch(msgCode) {
        case '0x0020': // Closed/No Motion/Dry
        	resultMap = getContactResult('closed')
            break

        case '0x0021': // Open/Motion/Wet
        	resultMap = getContactResult('open')
            break

        case '0x0022': // Tamper Alarm
            break

        case '0x0023': // Battery Alarm
            break

        case '0x0024': // Supervision Report
        	resultMap = getContactResult('closed')
            break

        case '0x0025': // Restore Report
        	resultMap = getContactResult('open')
            break

        case '0x0026': // Trouble/Failure
            break

        case '0x0028': // Test Mode
            break
        case '0x0000':
			resultMap = createEvent(name: "tamper", value: "clear", isStateChange: true, displayed: false)
            break
        case '0x0004':
			resultMap = createEvent(name: "tamper", value: "detected", isStateChange: true, displayed: false)
            break;
        default:
        	log.debug "Invalid message code in IAS message: ${msgCode}"
    }
    return resultMap
}


private Map getMotionResult(value) {
	String linkText = getLinkText(device)
	String descriptionText = value == 'active' ? "${linkText} detected motion" : "${linkText} motion has stopped"
	return [
		name: 'motion',
		value: value,
		descriptionText: descriptionText
	]
}
def motionON() {
    log.debug "--- Motion Detected"
    sendEvent(name: "motion", value: "active", displayed:true, isStateChange: true)

	//-- Calculate Inactive timeout value
	def motionTimeRun = (settings.motionTime?:0).toInteger()

	//-- If Inactive timeout was configured
	if (motionTimeRun > 0) {
		log.debug "--- Will become inactive in $motionTimeRun seconds"
		runIn(motionTimeRun, "motionOFF")
	}
}

def motionOFF() {
	log.debug "--- Motion Inactive (OFF)"
    sendEvent(name: "motion", value: "inactive", displayed:true, isStateChange: true)
}

def panicContact() {
	log.debug "--- Panic button hit"
    sendEvent(name: "contact", value: "open", displayed: true, isStateChange: true)
    runIn(3, "panicContactClose")
}

def panicContactClose()
{
	sendEvent(name: "contact", value: "closed", displayed: true, isStateChange: true)
}

//TODO: find actual good battery voltage range and update this method with proper values for min/max
//
//Converts the battery level response into a percentage to display in ST
//and creates appropriate message for given level

private getBatteryResult(rawValue) {
	def linkText = getLinkText(device)

	def result = [name: 'battery']

	def volts = rawValue / 10
	def descriptionText
	if (volts > 3.5) {
		result.descriptionText = "${linkText} battery has too much power (${volts} volts)."
	}
	else {
		def minVolts = 2.5
		def maxVolts = 3.0
		def pct = (volts - minVolts) / (maxVolts - minVolts)
		result.value = Math.min(100, Math.round(pct * 100))
		result.descriptionText = "${linkText} battery was ${result.value}%"
	}

	return result
}

private getTemperature(value) {
	def celcius = Integer.parseInt(value, 16).shortValue() / 100
	if(getTemperatureScale() == "C"){
		return celcius
	} else {
		return celsiusToFahrenheit(celcius) as Integer
	}
}

private Map getTemperatureResult(value) {
	log.debug 'TEMP'
	def linkText = getLinkText(device)
	if (tempOffset) {
		def offset = tempOffset as int
		def v = value as int
		value = v + offset
	}
	def descriptionText = "${linkText} was ${value}°${temperatureScale}"
	return [
		name: 'temperature',
		value: value,
		descriptionText: descriptionText
	]
}

//------Command handlers------//
private handleArmRequest(message){
	def keycode = new String(message.data[2..-2] as byte[],'UTF-8')
	def reqArmMode = message.data[0]
	//state.lastKeycode = keycode
	log.debug "Received arm command with keycode/armMode: ${keycode}/${reqArmMode}"

	//Acknowledge the command. This may not be *technically* correct, but it works
	/*List cmds = [
				 "raw 0x501 {09 01 00 0${reqArmMode}}", "delay 200",
				 "send 0x${device.deviceNetworkId} 1 1", "delay 500"
				]
	def results = cmds?.collect { new physicalgraph.device.HubAction(it) } + createCodeEntryEvent(keycode, reqArmMode)
	*/
	def results = createCodeEntryEvent(keycode, reqArmMode)
	log.trace "Method: handleArmRequest(message): "+results
	return results
}

def createCodeEntryEvent(keycode, armMode) {
	createEvent(name: "codeEntered", value: keycode as String, data: armMode as String,
				isStateChange: true, displayed: false)
}

//
//The keypad seems to be expecting responses that are not in-line with the HA 1.2 spec. Maybe HA 1.3 or Zigbee 3.0??
//
private sendStatusToDevice() {
	log.debug 'Sending status to device...'
	def armMode = device.currentValue("armMode")
	log.trace 'Arm mode: '+armMode
	def status = ''
	if (armMode == null || armMode == 'disarmed') status = 0
	else if (armMode == 'armedAway') status = 3
	else if (armMode == 'armedStay') status = 1
	else if (armMode == 'armedNight') status = 2

	// If we're not in one of the 4 basic modes, don't update the status, don't want to override beep timings, exit delay is dependent on it being correct
	if (status != '')
	{
		return sendRawStatus(status)
	}
    else
    {
    	return []
    }
}


// Statuses:
// 00 - Disarmed
// 01 - Armed partial
// 02 - Armed partial
// 03 - Armed Away
// 04 - ?
// 05 - Fast beep (1 per second)
// 05 - Entry delay (Uses seconds) Appears to keep the status lights as it was
// 06 - Amber status blink (Ignores seconds)
// 07 - ?
// 08 - Red status blink
// 09 - ?
// 10 - Exit delay Slow beep (2 per second, accelerating to 1 beep per second for the last 10 seconds) - With red flashing status - Uses seconds
// 11 - ?
// 12 - ?
// 13 - ?

private sendRawStatus(status, seconds = 00) {
	log.debug "Sending Status ${zigbee.convertToHexString(status)}${zigbee.convertToHexString(seconds)} to device..."

    // Seems to require frame control 9, which indicates a "Server to client" cluster specific command (which seems backward? I thought the keypad was the server)
    List cmds = ["raw 0x501 {09 01 04 ${zigbee.convertToHexString(status)}${zigbee.convertToHexString(seconds)}}",
    			 "send 0x${device.deviceNetworkId} 1 1", 'delay 100']

    def results = cmds?.collect { new hubitat.device.HubAction(it) };
    return results
}

def notifyPanelStatusChanged(status) {
	//TODO: not yet implemented. May not be needed.
}
//------------------------//

def setDisarmed() { setModeHelper("disarmed",0) }
def setArmedAway(def delay=0) { setModeHelper("armedAway",delay) }
def setArmedStay(def delay=0) { setModeHelper("armedStay",delay) }
def setArmedNight(def delay=0) { setModeHelper("armedNight",delay) }

def setEntryDelay(delay) {
	setModeHelper("entryDelay", delay)
	sendRawStatus(5, delay) // Entry delay beeps
}

def setExitDelay(delay) {
	setModeHelper("exitDelay", delay)
	sendRawStatus(10, delay)  // Exit delay
}

private setModeHelper(String armMode, delay) {
	sendEvent([name: "armMode", value: armMode, data: [delay: delay as int], isStateChange: true])
    def lastUpdate = formatLocalTime(now())
    sendEvent(name: "lastUpdate", value: lastUpdate, displayed: false)
	sendStatusToDevice()
}

private setKeypadArmMode(armMode){
	Map mode = [disarmed: '00', armedAway: '03', armedStay: '01', armedNight: '02', entryDelay: '', exitDelay: '']
    if (mode[armMode] != '')
    {
		return ["raw 0x501 {09 01 04 ${mode[armMode]}00}",
				 "send 0x${device.deviceNetworkId} 1 1", 'delay 100']
    }
}

def acknowledgeArmRequest(armMode){
	List cmds = [
				 "raw 0x501 {09 01 00 0${armMode}}",
				 "send 0x${device.deviceNetworkId} 1 1", "delay 100"
				]
	def results = cmds?.collect { new hubitat.device.HubAction(it) }
	log.trace "Method: acknowledgeArmRequest(armMode): "+results
	return results
}

def sendInvalidKeycodeResponse(){
	List cmds = [
				 "raw 0x501 {09 01 00 04}",
				 "send 0x${device.deviceNetworkId} 1 1", "delay 100"
				]

	log.trace 'Method: sendInvalidKeycodeResponse(): '+cmds
	return (cmds?.collect { new hubitat.device.HubAction(it) }) + sendStatusToDevice()
}

def beep(def beepLength = settings.beepLength) {
	if ( beepLength == null )
	{
		beepLength = 0
	}
	def len = zigbee.convertToHexString(beepLength, 2)
	List cmds = ["raw 0x501 {09 01 04 05${len}}",
		     "send 0x${device.deviceNetworkId} 1 1", 'delay 100']
	cmds
}

//------Utility methods------//

private String swapEndianHex(String hex) {
	reverseArray(hex.decodeHex()).encodeHex()
}

private byte[] reverseArray(byte[] array) {
	int i = 0;
	int j = array.length - 1;
	byte tmp;
	while (j > i) {
		tmp = array[j];
		array[j] = array[i];
		array[i] = tmp;
		j--;
		i++;
	}
	return array
}
//------------------------//

private testCmd(){
	//log.trace zigbee.parse('catchall: 0104 0501 01 01 0140 00 4F2D 01 00 0000 07 00 ')
	//beep(10)
	//test exit delay
	//log.debug device.zigbeeId
	//testingTesting()
	//discoverCmds()
	//zigbee.configureReporting(1,0x20,0x20,3600,43200,0x01)		//battery reporting
	//["raw 0x0001 {00 00 06 00 2000 20 100E FEFF 01}",
	//"send 0x${device.deviceNetworkId} 1 1"]
	//zigbee.command(0x0003, 0x00, "0500") //Identify: blinks connection light

	//log.debug 		//temperature reporting

	return zigbee.readAttribute(0x0020,0x01) +
		    zigbee.readAttribute(0x0020,0x02) +
		    zigbee.readAttribute(0x0020,0x03)
}

private discoverCmds(){
	List cmds = ["raw 0x0501 {08 01 11 0011}", 'delay 200',
				 "send 0x${device.deviceNetworkId} 1 1", 'delay 500']
	cmds
}

private testingTesting() {
	log.debug "Delay: "+device.currentState("armMode").toString()
	List cmds = ["raw 0x501 {09 01 04 050A}", 'delay 200',
				 "send 0x${device.deviceNetworkId} 1 1", 'delay 500']
	cmds
}

#146

Thanks for your efforts but no dice. When I try to arm or disarm it loses connection and I have to re-pair.


#147

That's strange. Possible a range or battery issue? Possible you can leave the keypad close to the hub and test it?


#148

I was right by the hub. The connection light goes out when I try to arm or disarm with this driver for some reason.


#149

Can you post a picture of the keypad in question?


#150

#151

I may have missed something here. I'd been using the ST driver for a few days and it was working perfect for my automation. This morning I switched both bulbs back to the native HT driver and they no longer provided their proper state when the dumb switch powering them was turned off. When I switched them back to the ST driver life was good again.


#152

Did you click CONFIGURE when you switched back to the Hubitat built-in driver? If so, that could wipe out the device setting needed to make these bulbs report physical power on/off events. Do not click CONFIGURE when switching to the Hubitat driver (at least that is what worked for me! :wink: )


#153

Yeah, there is an older firmware version of these that didn't join correctly, we made a platform change in 2.0.6 that fixes that issue, there are other changes to the driver in works mostly to support the newer v3 keypads, these updates won't make 2.0.6.


#154

Oh yeah, already learned that lesson. That's how I know the ST version is working when I switch back and forth.

Edit, Just reread you instructions @ogiewon. I did wipe out those values by clicking configure. Thanks for keeping me straight on that.


#155


#156

Yup, this issue also presents as a lack of the double beep on device join.


#157

When using ST drivers click configure but when you switch back to the other driver DO NOT click configure.


#158

Yup.. If you pair it back to Iris it still should get a FW update. I still have a keypad from the Iris V2 beta that does this. I’ve been successful hitting configure a couple times, eventually it will triple beep.


#159

These don't advertize the ota cluster, so I'm not sure how iris is updating the firmware on these.

In any event 2.0.6 allows them to initialize correctly so the panel indicators don't remain on.


#160

So you're saying to just sit tight and wait for 2.0.6 and this issue will be resolved?


#161

It was for my keypad. It should be for yours as well, it will require removing the keypad from HE, factory resetting it, then joining it again.


#162

As long as it'll work I don't jumping though a few hoops lol.

BTW, is there an ETA for 2.0.6?


#163

Probably early next week
