I think your idea is good. Seeing it directly always gives you comfort.
2 Likes
Interesting device. Do you think it could be used to measure snow depth? i.e. will it simply measure a distance and then report on changes (be it snow, leaves or any other kind of difference from initial distance?)
Seems like the ultrasonic technology is used for snow depth measurements :
1 Like
Indeed. That is what I was thinking and do I understand correctly that these sensors use Ultrasonic to measure the water depth?
Also, was looking at the EEptech link to Amazon and it seems like the seller has done a switch to another device on that listing.

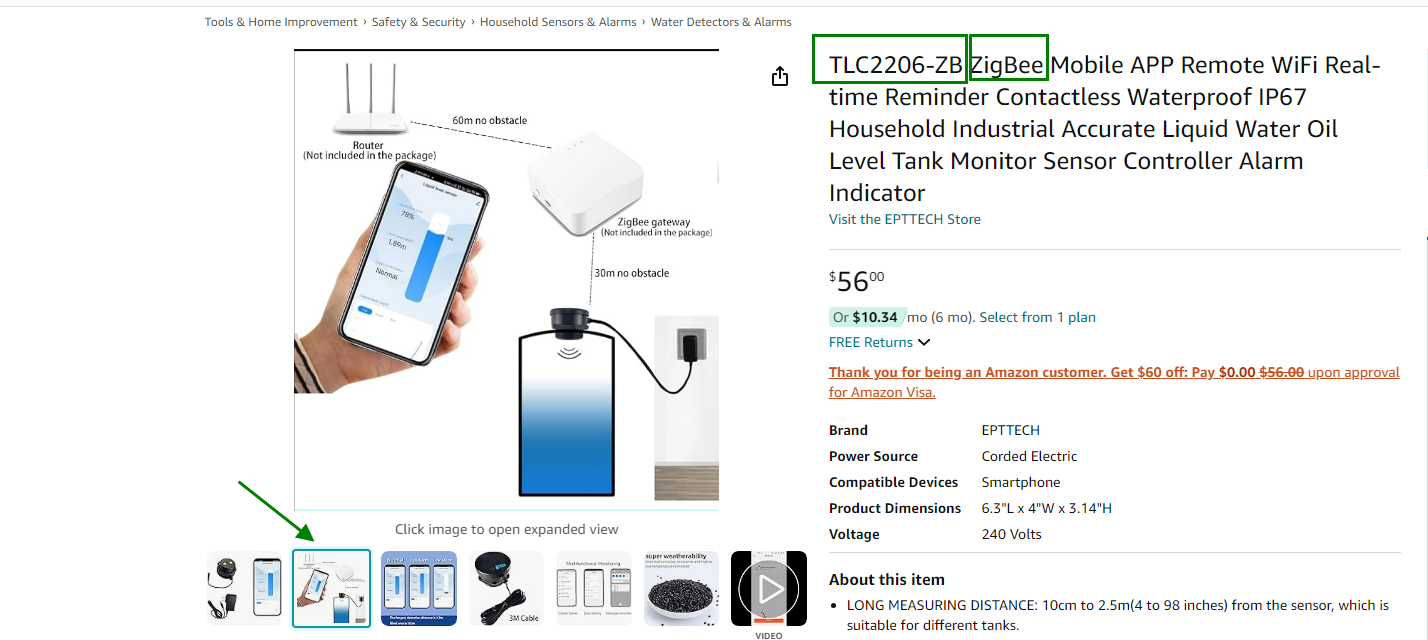

I think that the product is not changed - this is the only one Zigbee version of the various models offered by this seller on Amazon :
Note, that what is sold on AliExpress has a slightly different firmware. However, both the Amazon (TS0601 _TZE200_lvkk0hdg) and the AliExpress (TS0601 _TZE204_ya4ft0w4) models are supported in the driver and both devices were tested by different HE users.
1 Like
Just stumbled upon this and I'm thinking salt level in a water softener system, wondering if this could be done or would the salt scatter the ultrasonic waves all around and be unreliable? Anyone that has one of these and a water softener be able to test it out?
I am also in doubt that if the salt scatters or absorbs the ultrasonic waves, then the measurements may be unreliable... Probably we can ask the seller?
@jw970065, the water surface in your fishing pool is probably not very calm (there are fish inside!). Are the distance measurements stable, or do they vary?
1 Like
It remains very stable, and the error in the shaking of the water is about 1cm. (Based on the water depth of 60cm)
This is temporary, and it will be the same with other survey tools.
I placed an additional order.
I will ask the seller a question, but I don't expect it.
1 Like

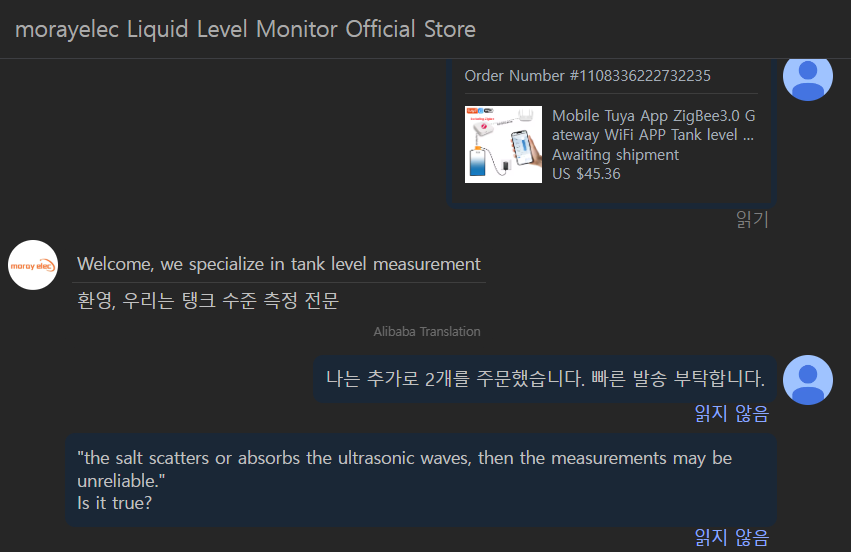

This is the seller's answer.
Hello sir, there is no problem with the measurement, it depends on the special circumstances on site
1 Like
hmmm, kind of generic answer but better than nothing I guess, might have to buy one and test it out, when out of salt it should report something stable in the worst case scenario. I might have another use for it if that does not work, now lets see if my toy budget was blown this month or not
2 Likes
This device works very well.
You didn't throw away the money..
I am (almost) ready to pull the trigger on this water level sensor.
I have doubts about this device working on an underground water tank. I guess I would have to place a repeater very close.
I already figured how to look at the water level with an app I already have, that I have used for rain level visuals for a long time.

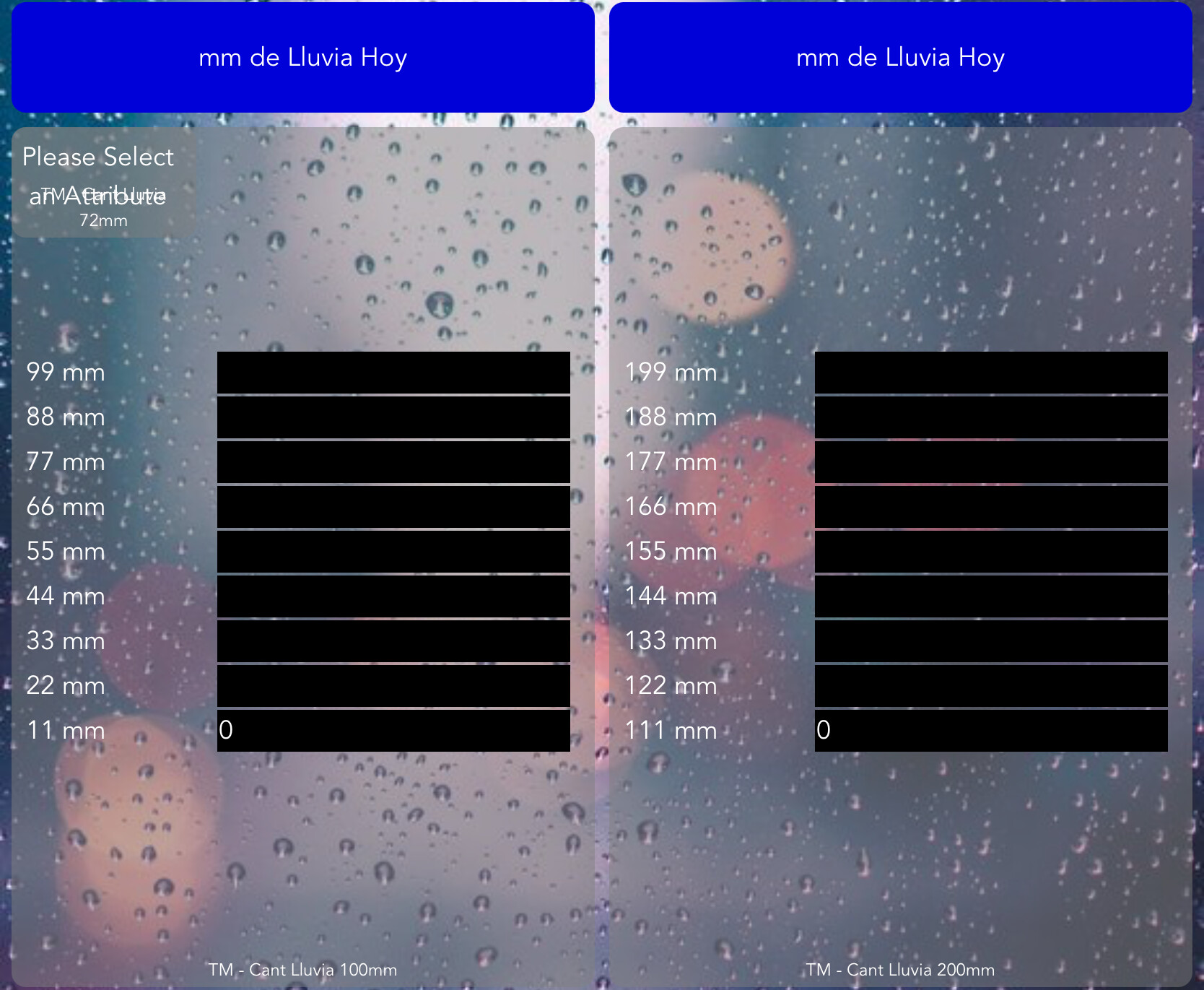

Something like this
This is made with an app called Tile Master by BPTWorld, although they are no longer maintained , and you can adjust the scale, and the colors that show the level at a specific moment.
You can still get the app from the developer’s site.
In this case you see black bars because it hasn’t rained lately around here, but it would show blue bars on the filled levels, and where the level is at the moment it would show a gray bar, and above that, black bars.
It looks pretty good.
Or like this
Or this
2 Likes
Folks can test in a container of sugar if it's easer.
I'm planning on adding this (ME201) to measure my heating oil tank. I see there is a Zigbee version and what appears to be a WiFi/Zigbee version.
Is there a reason to pick one over the other (ignoring the phone app)? I plan on using it with my C8
I was originally going to build one but at this price it's not worth the effort.
Thanks
Make sure you purchase the Zigee version from the link in the top post.

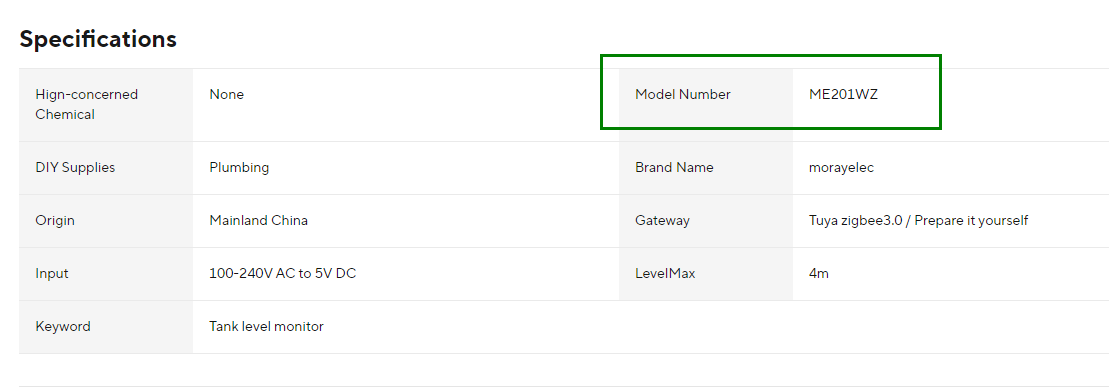

Check the Specifications section - the model must be ME201WZ
The WiFi versions can not be integrated directly into Hubitat.
Thanks. I am a bit confused, from what I read the:
ME201Z = Zigbee only
ME201WZ = both Zigbee and Wifi.
I don't see a reference to ME201Z on the link... But the content may change, as I am in Europe.

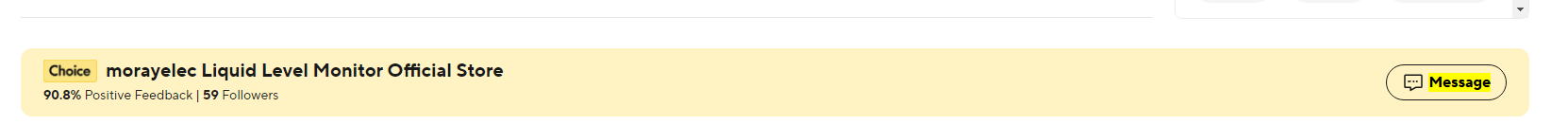

The best approach is to write to the seller - search the web page for ''Message' button :
They are rather responsive and cooperative (consider the time difference).
Ask them the confirm that you are ordering the Zigbee version.
1 Like
@JohnRob I got a message from the seller - ME201WZ and ME201Z are the same product. Ther is a small mistake in the product description page, they will fix it.
Does this sensor still exist and/or work?
It has threads on it that might be better adapted to a fuel oil tank, which I originally had thought I'd use it for.
I have updated the link to the EPTTECH store on AliExpress a few minutes ago. I don't know why it was changed recently... The Amazon link should be the same.
AliExpress : (link)
By 'excluding zigbee' they mean 'Tuya Zigbee hub is not included'.
In Hubitat, we do not need it..
I have the AliExpress model, but both Amazon and AE devices are supported in the driver.
