Hello.

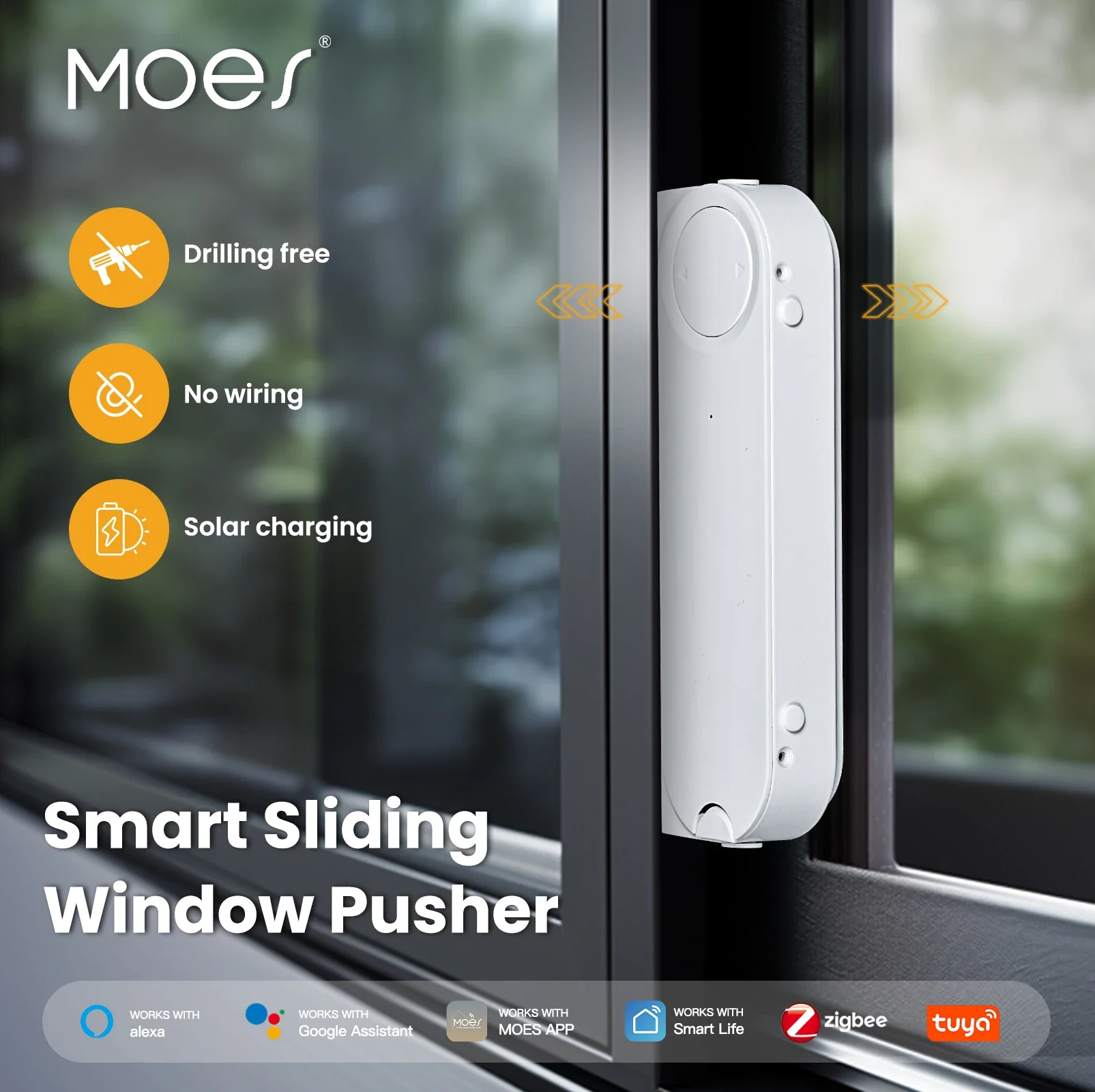

I bought a tuya zigbee opner.
I paired it to Hubitat but it didn't work because I didn't have a compatible driver.
I hope this device will work with Hubitat.
endpointId:01
application:4A
inClusters:0000,0003,0001,0500,EF00
manufacturer:_TZ3210_5rta89nj
model:TS0601
outClusters:000A,0019
softwareBuild:
This is a very new device, and there is no information available on GitHub for it.
You can try the Zemismart Zemismart Zigbee Blind driver, but this TS0601 _TZ3210_5rta89nj Zigbee fingerprint is different - it includes the IAS cluster in the inClusters list and I have no idea what it is used for.
Can you collect information on this device 'Data Points' using these instructions ?
I used Zemismart Zigbee Blind driver but it doesn't work.
And i don't have Tuya zigbee gateway.
So I can't use the method you told me.
We will have to wait until this device is supported in Zigbee2MQTT or other open-source platform, so that the Tuya-specific commands are available publically.
The alternative is to purchase a Tuya Zigbee to Matter gateway and then use this device via the Matter Bridge.
Tuya Matter Bridge
1 Like
Okay, so there's no way to connect directly to Hubitat yet.
The ST has an edge driver this device, so I'm currently connecting to ST to use it.
1 Like
I can look at the ST Edge driver - can you send me the link?
ST Edge driver link :
Edge driver is windows-opener-YJ-v1.
1 Like
kwon2288:
windows-opener-YJ-v1
Is there a post about this driver in the ST community forum? I can't find it ...
There are no related posts in the ST forum.
This driver was created by a developer in small forum.
Do you know him and can you ask him for information about the commands used for controlling this device?
I don't know him either.
All I know is the invite link.
Have you tried this SmartThings<->Hubitat integration?
A Hubitat application to allow real-time bi-direction updates between Hubitat and SmartThings devices, modes, scenes, weather and push notifications utilizing the SmartThings OAuth Cloud API. Includes the ability to have multiple ST locations with multiple ST hubs replicated to a single Hubitat hub. It is not a requirement to have a ST hub to operate mirror functions to cloud native ST devices.
This solution requires a reasonable degree of understanding of both Hubitat and SmartThings. The origโฆ
Attach the device's integration data logs.
capabilities: {"components":[{"attributes":{"contact":{"enumCommands":[],"schema":{"additionalProperties":false,"properties":{"value":{"enum":["closed","open"],"title":"ContactState","type":"string"}},"required":["value"],"type":"object"}}},"commands":{},"ephemeral":false,"id":"contactSensor","name":"Contact Sensor","status":"live","version":1},{"attributes":{"supportedWindowShadeCommands":{"enumCommands":[],"schema":{"additionalProperties":false,"properties":{"value":{"items":{"enum":["open","close","pause"],"type":"string"},"type":"array"}},"required":[],"type":"object"}},"windowShade":{"enumCommands":[{"command":"close","value":"closed"},{"command":"open","value":"open"}],"schema":{"additionalProperties":false,"properties":{"value":{"enum":["closed","closing","open","opening","partially open","paused","unknown"],"title":"OpenableState","type":"string"}},"required":["value"],"type":"object"}}},"commands":{"close":{"arguments":[],"name":"close"},"open":{"arguments":[],"name":"open"},"pause":{"arguments":[],"name":"pause"}},"ephemeral":false,"id":"windowShade","name":"Window Shade","status":"live","version":1},{"attributes":{"shadeLevel":{"enumCommands":[],"schema":{"additionalProperties":false,"properties":{"unit":{"default":"%","enum":["%"],"type":"string"},"value":{"maximum":100,"minimum":0,"type":"integer"}},"required":["value"],"title":"IntegerPercent","type":"object"},"setter":"setShadeLevel"}},"commands":{"setShadeLevel":{"arguments":[{"name":"shadeLevel","optional":false,"schema":{"maximum":100,"minimum":0,"type":"integer"}}],"name":"setShadeLevel"}},"ephemeral":false,"id":"windowShadeLevel","name":"Window Shade Level","status":"live","version":1},{"attributes":{},"commands":{"presetPosition":{"arguments":[],"name":"presetPosition"}},"ephemeral":false,"id":"windowShadePreset","name":"Window Shade Preset","status":"live","version":1},{"attributes":{"powerSource":{"enumCommands":[],"schema":{"additionalProperties":false,"properties":{"value":{"enum":["battery","dc","mains","unknown"],"type":"string"}},"required":["value"],"type":"object"}}},"commands":{},"ephemeral":false,"id":"powerSource","name":"Power Source","status":"live","version":1},{"attributes":{"battery":{"enumCommands":[],"schema":{"additionalProperties":false,"properties":{"unit":{"default":"%","enum":["%"],"type":"string"},"value":{"maximum":100,"minimum":0,"type":"integer"}},"required":["value"],"title":"IntegerPercent","type":"object"}}},"commands":{},"ephemeral":false,"id":"battery","name":"Battery","status":"live","version":1}]}
commands: {"setEnergyValue":[{"name":"energy ","type":"NUMBER"}],"setPowerValue":[{"name":"power ","type":"NUMBER"}],"setShadeLevelValue":[{"name":"shadeLevel*","type":"NUMBER"}],"setSupportedWindowShadeCommandsValue":[{"name":"supportedWindowShadeCommands*","type":"JSON_OBJECT"}],"setWindowShadeValue":[{"name":"windowShade*","type":"ENUM"}],"setWindowShadePartiallyOpen": ,"setWindowShadeClosed": ,"setWindowShadeOpen": ,"setWindowShadeClosing": ,"setWindowShadeUnknown": ,"setHealthStatusValue":[{"name":"healthStatus*","type":"ENUM"}]}**
description: {"allowed":null,"components":[{"capabilities":[{"id":"windowShade","version":1},{"id":"windowShadeLevel","version":1},{"id":"windowShadePreset","version":1},{"id":"powerSource","version":1},{"id":"battery","version":1}],"categories":[{"categoryType":"manufacturer","name":"ContactSensor"},{"categoryType":"manufacturer","name":"ContactSensor"}],"id":"main","label":"main"}],"createTime":"2024-05-17T11:21:12.199Z","deviceId":"3d182c3f-1652-449d-9022-caab2ae413ef","deviceManufacturerCode":"_TZ3210_5rta89nj","executionContext":"LOCAL","label":"\ubca0\ub780\ub2e4\ubb38","locationId":"f5cdf600-766b-4c34-b1be-f4e3064207fd","manufacturerName":"SmartThingsCommunity","name":"tuya-window-opener","ownerId":"4226964a-b13b-08c7-64c6-352a4c8f855a","parentDeviceId":"ffdcfd1b-f1fe-470e-a5e7-4b227f0a7c9d","presentationId":"038fff1a-8ed4-37b7-8a5f-aac3a4bc667e","profile":{"id":"500b7d94-ec59-3aec-b56e-01f81671e44a"},"restrictionTier":0,"roomId":"007747ef-b4f1-4ff0-a01e-9f8227411b04","type":"ZIGBEE","zigbee":{"driverId":"c5a70b6d-cf6e-4150-8847-90df3403265f","eui":"94B216FFFEF258F4","executingLocally":true,"hubId":"ffdcfd1b-f1fe-470e-a5e7-4b227f0a7c9d","networkId":"B970","provisioningState":"PROVISIONED"}}
health: {"deviceId":"3d182c3f-1652-449d-9022-caab2ae413ef","lastUpdatedDate":"2024-05-17T11:21:28.038Z","state":"ONLINE"}
replica: {"deviceId":"3d182c3f-1652-449d-9022-caab2ae413ef","componentId":"main","replicaId":695,"type":"child"}
rules: {"version":1,"components":[{"trigger":{"type":"attribute","properties":{"value":{"title":"OpenableState","type":"string"}},"additionalProperties":false,"required":["value"],"capability":"windowShade","attribute":"windowShade","label":"attribute: windowShade."},"command":{"name":"setWindowShadeValue","label":"command: setWindowShadeValue(windowShade )","type":"command","parameters":[{"name":"windowShade ","type":"ENUM"}]},"type":"smartTrigger"},{"trigger":{"title":"IntegerPercent","type":"attribute","properties":{"value":{"type":"integer","minimum":0,"maximum":100},"unit":{"type":"string","enum":["%"],"default":"%"}},"additionalProperties":false,"required":["value"],"capability":"windowShadeLevel","attribute":"shadeLevel","label":"attribute: shadeLevel."},"command":{"name":"setShadeLevelValue","label":"command: setShadeLevelValue(shadeLevel )","type":"command","parameters":[{"name":"shadeLevel ","type":"NUMBER"}]},"type":"smartTrigger"},{"trigger":{"name":"close","label":"command: close()","type":"command"},"command":{"name":"close","type":"command","capability":"windowShade","label":"command: close()"},"type":"hubitatTrigger"},{"trigger":{"name":"open","label":"command: open()","type":"command"},"command":{"name":"open","type":"command","capability":"windowShade","label":"command: open()"},"type":"hubitatTrigger"},{"trigger":{"name":"pause","label":"command: pause()","type":"command"},"command":{"name":"pause","type":"command","capability":"windowShade","label":"command: pause()"},"type":"hubitatTrigger"},{"trigger":{"type":"attribute","properties":{"value":{"title":"HealthState","type":"string"}},"additionalProperties":false,"required":["value"],"capability":"healthCheck","attribute":"healthStatus","label":"attribute: healthStatus."},"command":{"name":"setHealthStatusValue","label":"command: setHealthStatusValue(healthStatus )","type":"command","parameters":[{"name":"healthStatus*","type":"ENUM"}]},"type":"smartTrigger","mute":true},{"trigger":{"type":"attribute","properties":{"value":{"type":"array","items":{"type":"string","enum":["open","close","pause"]}}},"additionalProperties":false,"required": ,"capability":"windowShade","attribute":"supportedWindowShadeCommands","label":"attribute: supportedWindowShadeCommands."},"command":{"name":"setSupportedWindowShadeCommandsValue","label":"command: setSupportedWindowShadeCommandsValue(supportedWindowShadeCommands )","type":"command","parameters":[{"name":"supportedWindowShadeCommands*","type":"JSON_OBJECT"}]},"type":"smartTrigger"},{"trigger":{"name":"setShadeLevel","label":"command: setShadeLevel(shadeLevel*)","type":"command","parameters":[{"name":"shadeLevel*","type":"NUMBER"}]},"command":{"name":"setShadeLevel","arguments":[{"name":"shadeLevel","optional":false,"schema":{"type":"integer","minimum":0,"maximum":100}}],"type":"command","capability":"windowShadeLevel","label":"command: setShadeLevel(shadeLevel*)"},"type":"hubitatTrigger"}]}**
status: {"components":{"main":{"battery":{"battery":{"timestamp":"2024-05-21T21:46:49.192Z","unit":"%","value":80}},"powerSource":{"powerSource":{"timestamp":"2024-05-17T11:21:25.860Z","value":"battery"}},"windowShade":{"supportedWindowShadeCommands":{"timestamp":"2024-05-17T11:21:25.625Z","value":["open","close","pause"]},"windowShade":{"timestamp":"2024-05-22T21:50:19.955Z","value":"partially open"}},"windowShadeLevel":{"shadeLevel":{"timestamp":"2024-05-22T21:50:19.974Z","unit":"%","value":60}},"windowShadePreset":{}}}}
triggers: {"close":[],"open":[],"pause":[],"setShadeLevel":[{"name":"shadeLevel ","type":"NUMBER"}],"setPosition":[{"name":"position ","type":"NUMBER"}],"startPositionChange":[{"name":"direction*","type":"ENUM"}],"refresh": }**
1 Like
Hi Kwon2288 , did you manage to find any working driver for this? I had just bought the same device but can't find any working driver for it too.
Tuya Data Points are already known :
opened 12:41AM - 31 May 24 UTC
new device support
### Link
https://es.aliexpress.com/item/1005006923987304.html?srcSns=sns_Copy&sโฆ preadType=socialShare&bizType=ProductDetail&social_params=6000095348167&aff_fcid=edc5a5efbe864160b08f0be54d56e580-1717115370159-07010-_onkx4EO&tt=MG&aff_fsk=_onkx4EO&aff_platform=default&sk=_onkx4EO&aff_trace_key=edc5a5efbe864160b08f0be54d56e580-1717115370159-07010-_onkx4EO&shareId=6000095348167&businessType=ProductDetail&platform=AE&terminal_id=4f343b0e05b24ec5a29e575a82deeb16&afSmartRedirect=y
### Database entry
{"id":18,"type":"EndDevice","ieeeAddr":"0x94b216fffef1b487","nwkAddr":47149,"manufId":4098,"manufName":"_TZ3210_5rta89nj","powerSource":"Battery","modelId":"TS0601","epList":[1],"endpoints":{"1":{"profId":260,"epId":1,"devId":1026,"inClusterList":[0,3,1,1280,61184],"outClusterList":[10,25],"clusters":{},"binds":[],"configuredReportings":[],"meta":{}}},"appVersion":74,"stackVersion":1,"hwVersion":1,"dateCode":"","zclVersion":3,"interviewCompleted":true,"meta":{},"lastSeen":1717113801806}
### Comments
Please make a new registration so that I can use this product
### External definition
```shell
const {identify, battery, iasZoneAlarm} = require('zigbee-herdsman-converters/lib/modernExtend');
const definition = {
zigbeeModel: ['TS0601'],
model: 'TS0601',
vendor: '_TZ3210_5rta89nj',
description: 'Automatically generated definition',
extend: [identify(), battery(), iasZoneAlarm({"zoneType":"generic","zoneAttributes":["alarm_1","alarm_2","tamper","battery_low"]})],
meta: {},
};
module.exports = definition;
```
I will try adding it to the community Zemismart Zigbee Blind driver next weekend.
Or better - make a new one. The old Zemismart became difficult to support.
3 Likes
kkossev thank you so much. Greatly appreciated.
1 Like
I did not connect the device to hubitat.
I am connected to smartthings.
1 Like
I'm looking forward to the update.
