I just installed a fan that had a proprietary RF remote control. I'm using a Broadlink RM4 Pro to control it. Setup a virtual fan that I added to a dashboard and a wrote a "Rule" for each action On/Off/Low etc.. Works great. But we usually use Alexa to control things. Seems Alexa is completely ignoring my Virtual Fan device. I'm guessing that it's not supported. Any clever approaches to get around this?
Thanks in advance!
Plus it doesn't look like HomeKit likes it either. So, no Siri controls...
I believe I had to use the "Enhanced Virtual Fan Driver" - See:
I think I ended up tweaking my copy to support the 3 speeds the fan supports as well as on/off and I had to "adjust" the speed settings, that matched with L/M/H. Sounds like you already have working rules to mirror these actions to the "real" fan device (or I think you can use Switch Bindings as well} - See this thread: Mirroring Virtual Fan to Physical Fan Controller
But as if I understand what you wrote, you just need to replace the driver for your virtual fan device with this "enhanced" driver, and likely remap it into Alexa. I shared my edits below, as I was updated this to work with an Inovelli Matter Canopy module, and I had to use this driver (with my tweaks) to get it working in Alexa: - My specific use case for the physical fan is: White Series Smart Fan/Light Canopy Module | Inovelli And yes, similar to you, I wrote a series of rules to map the enhanced virtual fan status to the physical fan.
/**
* Enhanced Virtual Fan Controller
*
* Copyright 2019 Joel Wetzel
*
* Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except
* in compliance with the License. You may obtain a copy of the License at:
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software distributed under the License is distributed
* on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License
* for the specific language governing permissions and limitations under the License.
*
*/
metadata {
definition (name: "Enhanced Virtual Fan Controller", namespace: "joelwetzel", author: "Joel Wetzel", description: "A virtual fan controller that also behaves as a switch.") {
capability "Refresh"
capability "Actuator"
capability "Sensor"
capability "Switch"
capability "Switch Level"
capability "Fan Control"
attribute "lastSpeed", "string"
}
preferences {
section {
input (
type: "bool",
name: "enableDebugLogging",
title: "Enable Debug Logging?",
required: true,
defaultValue: false
)
}
}
}
def log (msg) {
if (enableDebugLogging) {
log.debug msg
}
}
def installed () {
initialize()
log.info "${device.displayName}.installed()"
updated()
}
def updated () {
initialize()
log.info "${device.displayName}.updated()"
}
def initialize() {
log.info "${device.displayName}.initialize()"
// Default values
sendEvent(name: "switch", value: "off", isStateChange: true)
sendEvent(name: "level", value: "0", isStateChange: true)
sendEvent(name: "speed", value: "off", isStateChange: true)
sendEvent(name: "lastSpeed", value: "low", isStateChange: true)
}
def refresh() {
}
def on() {
log "${device.displayName}.on()"
def lastSpeed = device.currentValue("lastSpeed")
sendEvent(name: "switch", value: "on", isStateChange: true)
sendEvent(name: "speed", value: lastSpeed, isStateChange: true)
sendEvent(name: "level", value: convertSpeedToLevel(lastSpeed), isStateChange: true)
}
def off() {
log "${device.displayName}.off()"
sendEvent(name: "switch", value: "off", isStateChange: true)
sendEvent(name: "speed", value: "off", isStateChange: true)
sendEvent(name: "level", value: 0, isStateChange: true)
}
def setSpeed(speed) {
log "${device.displayName}.setSpeed($speed)"
def adjustedSpeed = restrictSpeedLevels(speed) // Only allow certain speed settings. For example, don't allow "medium-high".
def adjustedLevel = convertSpeedToLevel(adjustedSpeed) // Some fan controllers depend on speed, some depend on level. Convert the speed to a level.
def adjustedSwitch = (adjustedSpeed == "off") ? "off" : "on" // If speed is "off", then turn off the switch too.
// Keep track of the last speed while on. Then if the fan is off, and
// we turn it back on, we can go back to the last on speed.
if (adjustedSpeed != "off") {
sendEvent(name: "lastSpeed", value: adjustedSpeed, isStateChange: true)
}
sendEvent(name: "switch", value: adjustedSwitch, isStateChange: true)
sendEvent(name: "speed", value: adjustedSpeed, isStateChange: true)
sendEvent(name: "level", value: adjustedLevel, isStateChange: true)
}
// If our input is level, convert it to a speed input.
def setLevel(level) {
log "${device.displayName}.setLevel($level)"
def requestedSpeed = convertLevelToSpeed(level)
setSpeed(requestedSpeed)
}
// This converts speeds back into levels. These values correspond well to a GE
// Z-Wave Plus Fan Controller, but might need to change for other smart fan
// controllers.
def convertSpeedToLevel(speed) {
switch (speed) {
case "off":
return 0
case "low":
return 33
case "medium":
return 66
case "high":
return 99
default:
return 10
}
}
// This restricts allowed speed levels. The GE Z-Wave Plus Smart Fan
// Controller doesn't support medium-low, medium-high, or auto, so
// this converts them into something else.
def restrictSpeedLevels(speed) {
switch (speed) {
case "off":
return "off"
case "low":
return "low"
case "medium-low":
return "medium"
case "medium":
return "medium"
case "medium-high":
return "high"
case "high":
return "high"
case "on":
return "low"
case "auto":
return "off"
default:
return "medium"
}
}
// This maps ranges of levels into speed values. Right now it's set for just
// three speeds and off.
def convertLevelToSpeed(level) {
if (level == 0) {
return "off"
}
else if (level < 34) {
return "low"
}
else if (level < 67) {
return "medium"
}
else {
return "high"
}
}
Yep, that works. Many thanks @GuyMan
Just curious - Does this work with Siri/Homekit (as I didn't test that)? - FYI it doesn't work with the "out-of-box" Google Home integration, but it should work with the community Google Home integration (as that supports fans, I believe).
Yep! It works. I restarted the HomeKit Integration and it's there working.
I have the same setup except I use the bond hub. The virtual Fan controller is controllable via Alexa with no issues for me. Been doing this for a couple years now.
Yep and the annoying thing is that I have a Bond Bridge too. But it just wouldn’t learn most of the buttons on the remote. Not for nothing. Bought the RM4 pro on a lark and it learned them easily. First issue I’ve had with Bond.

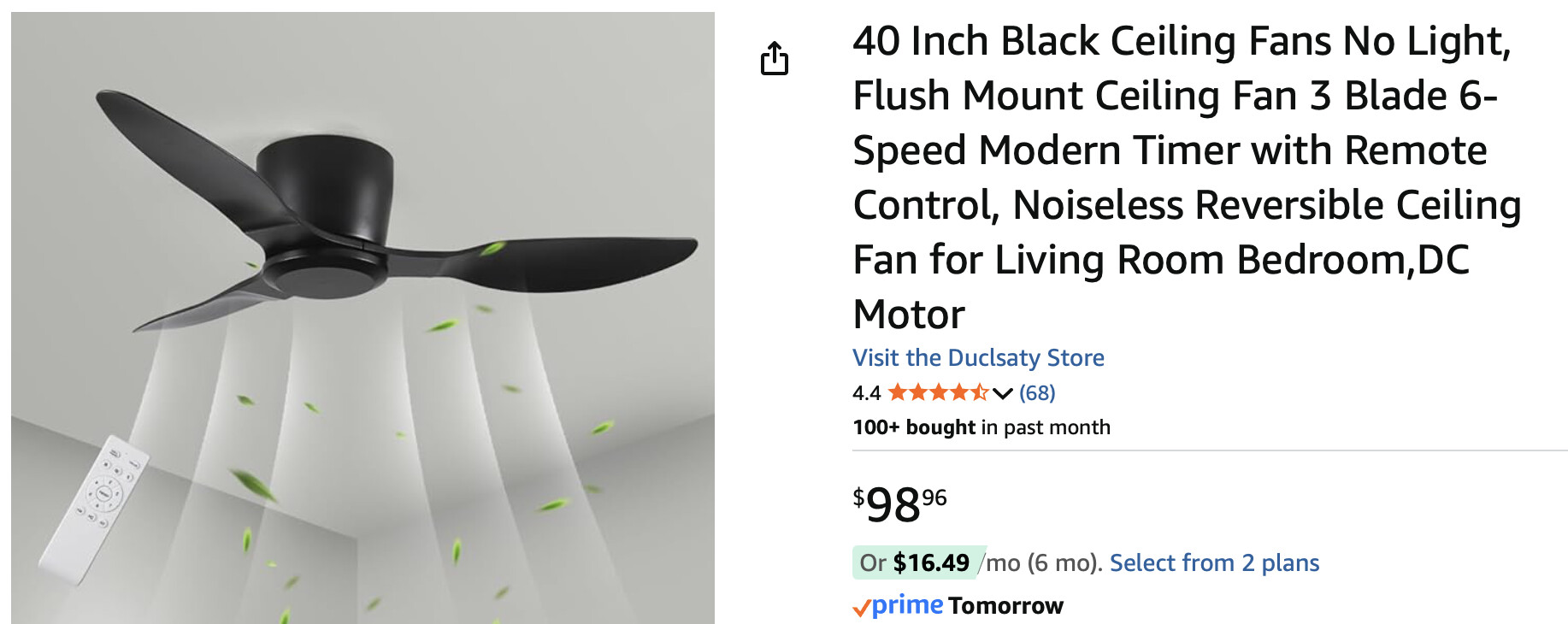

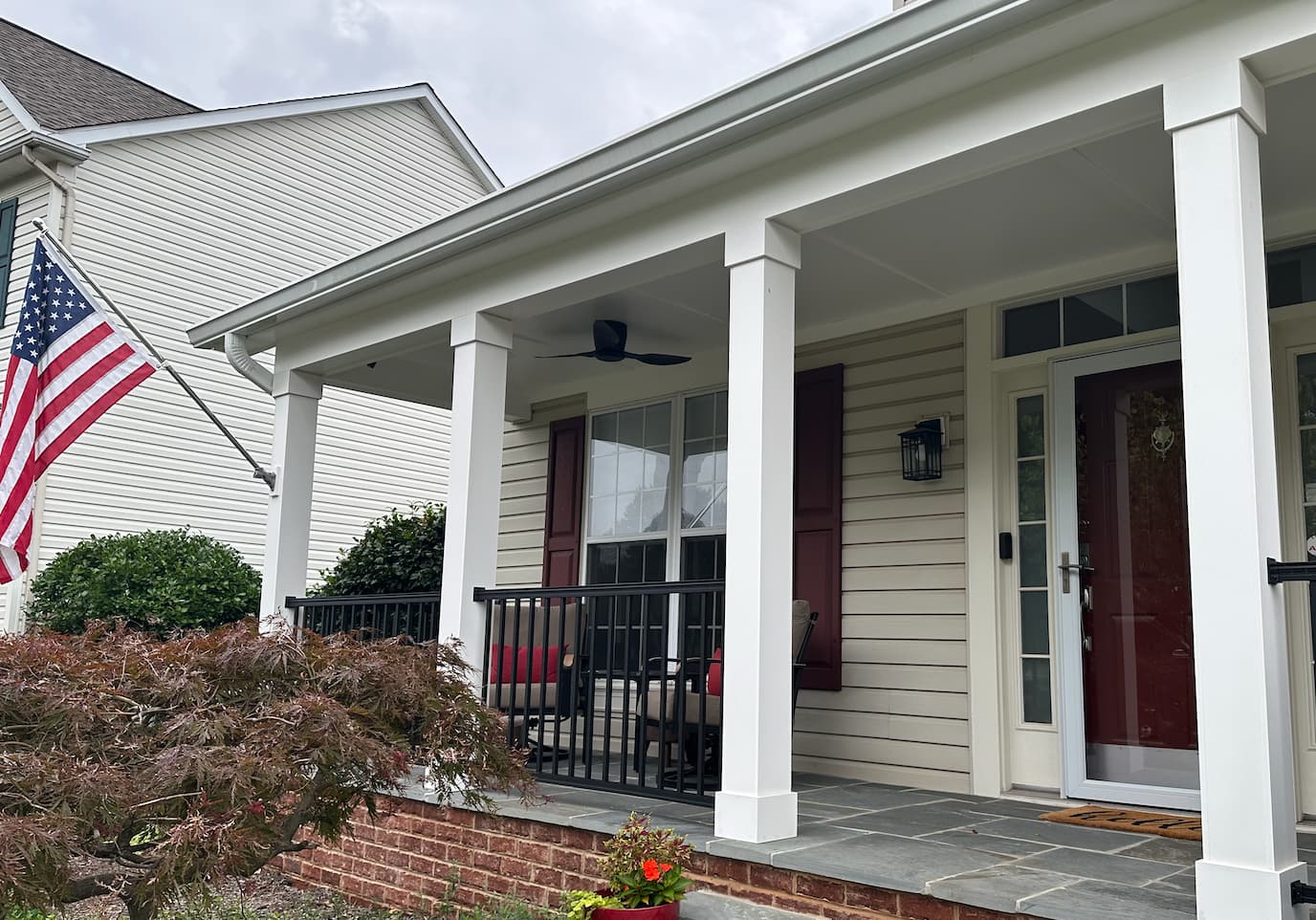

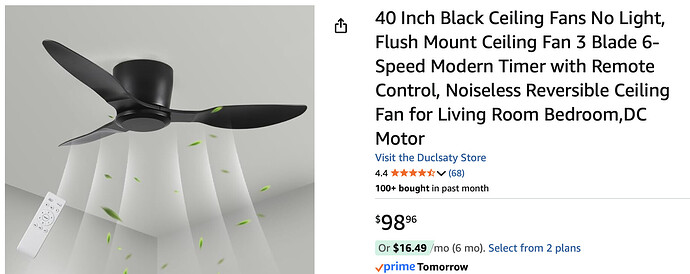

What is the make and model on the fan? I need to buy one.
