Hello everyone! Here is my newest development - a Pebble watch app that allows you to control your Hubitat devices via the Maker API. It is available on the Pebble Appstore. There are no apps or drivers to install in Hubitat except for the built-in Maker API.
It was created with security and efficiency in mind. The README is copied below, but is maintained here. I have a limited set of devices currently, as I am moving, but feel free to test it out and report back. I will be making a sister post on the Pebble side as well.
Here is the Pebble App Store link.
Hubitat Control
Control your Hubitat home from your wrist.
A Pebble watch app for lights, dimmers, speakers, locks, garage doors, shades and
sensors, talking to your hub through its built-in Maker API app — over your
home network, or through Hubitat's cloud relay when you are out.
No account, no third-party service, no bridge to install. Your hub and your phone
are the only things involved.
- Features
- Supported watches
- What you need
- Setting it up
- Using it
- Settings
- Devices it understands
- Security
- Battery
- Troubleshooting
- How it works
- Building from source
- Licence and trademarks
Features
- Every device on one list, with its current state —
On - 75%,Locked,
Closed,72°. - One-button control. Select toggles; up and down drive dimmers, volume and
shade position. - Local or Cloud, switchable from the watch itself — no digging through phone
settings when you leave the house. - Fast. The device list is cached, so the menu is on screen before the
network is touched. Live states load in behind it. - Careful with your credentials. The watch never holds your access token, and
the app refuses to send it to a network that has not proven it is your own. - Careful with your battery. Nothing polls, nothing runs in the background,
and the app closes itself after a minute rather than sitting open on your wrist.
Supported watches
Every Pebble ever made, including the new ones.
| Watch | Screen | |
|---|---|---|
| Pebble Classic / Steel | 144×168 | black & white |
| Pebble Time / Time Steel | 144×168 | colour |
| Pebble Time Round | 180×180 round | colour |
| Pebble 2 | 144×168 | black & white |
| Pebble Time 2 | 200×228 | colour |
| Pebble 2 Duo | 144×168 | black & white |
| Pebble Round 2 | 260×260 round | colour |
What you need
- A Hubitat Elevation hub on your network.
- A Pebble watch, paired to the Pebble phone app.
- Five minutes to turn on Maker API and paste two URLs.
Setting it up
1. Expose your devices in Hubitat
-
In the hub's web interface, go to Apps → Add Built-In App → Maker API.
-
Under Select Devices, pick every device you want on the watch. Only these
are ever visible to the app. -
Turn on Allow Access via Local IP Address. If you want control while away
from home, also turn on Allow Access via Cloud. -
Click Done, then reopen the app. Near the bottom it lists example URLs.
The two you want are both labelled Get All Devices:http://192.168.1.10/apps/api/34/devices?access_token=xxxxxxxx-xxxx-… https://cloud.hubitat.com/api/<hub-id>/apps/34/devices?access_token=xxxxxxxx-xxxx-…
2. Configure the watch app
Open the app's settings from the Pebble phone app and paste those two URLs into
Local URL and Cloud URL, exactly as the hub printed them. The address,
app id and access token are read out of them — there is nothing to assemble by
hand.
Then set Cloud Access Available to match whether you enabled Allow Access via
Cloud above, pick a starting Control Mode, and save. If you have no cloud
access, leave the Cloud URL blank and turn that setting off — the app will run
Local-only and say so.
Your access token is a password for every device you selected. Anyone who
has it can unlock what it can unlock. Treat the settings page like a password
field, and see Security for what the app does to protect it.
Using it

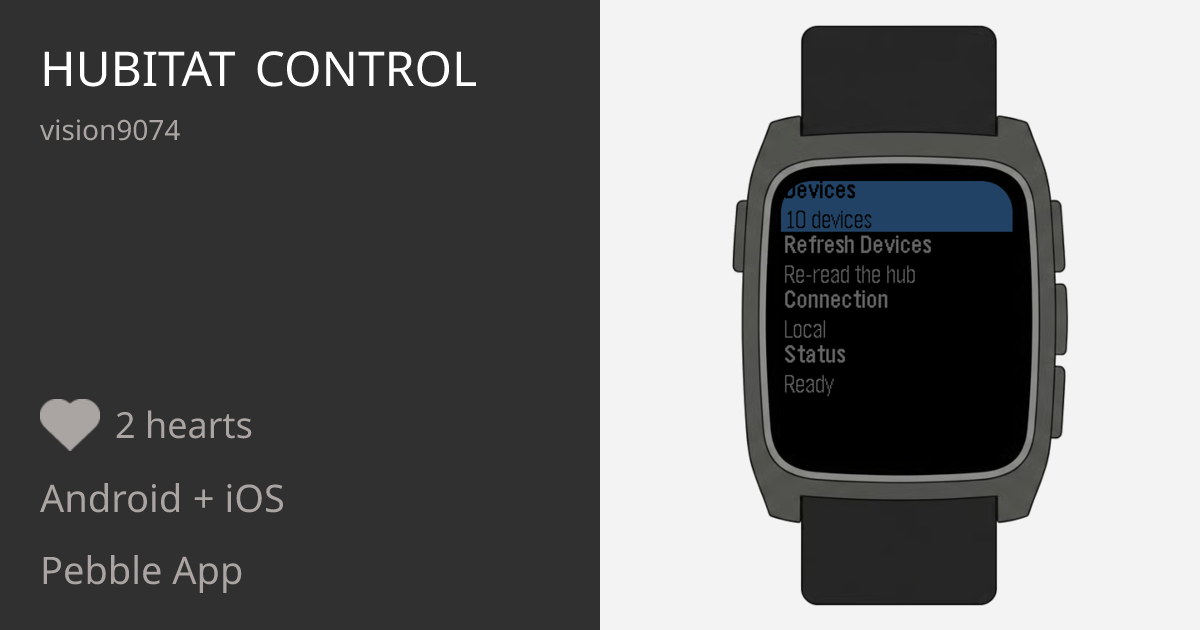

Main menu
| Row | What it does |
|---|---|
| Devices | Opens the device list. The subtitle shows how many were found. |
| Refresh Devices | Re-reads the hub from scratch. Use after adding a device in Hubitat, or to retry after an error. |
| Connection | Switches Local ⇄ Cloud. Reads Local only when no cloud route is configured. |
| Status | What the link last did, or why it failed. Select re-reads all states. |
Device list
| Button | Action |
|---|---|
| Up / Down | Move through the list |
| Select | Open the device |
| Hold Select | Toggle a switch, plug or light without opening it |
| Back | Leave the app |
Hold-to-toggle deliberately does not act on locks, garage doors or door
controls — holding select on one of those opens its screen instead, so unlocking
is always something you chose to do. See Locks and doors.
Device screen
| Button | Switch / Lock / Door | Dimmer / Volume / Shade | Sensor |
|---|---|---|---|
| Select | Toggle on ⇄ off | Toggle on ⇄ off | Re-read now |
| Up | Turn on / lock / open | Raise the level | — |
| Down | Turn off / unlock / close | Lower the level | — |
Holding up or down repeats. The level is sent once you stop moving it, so
dragging a dimmer from 10% to 80% is one command to your hub, not fourteen.
Momentary buttons fire on a single Select, with a short buzz to confirm.
It closes itself
After a minute with no button pressed, the app closes and hands the screen
back to your watchface. Any press starts the minute again — moving through the
list, opening a device, or coming back from one.
This is deliberate. A control app is something you use for a few seconds and walk
away from, and one left open on your wrist keeps the watch awake for no reason.
Readings arriving from your hub do not count as activity: the app closes because
you stopped using it, not because the hub went quiet.
Settings
All of these live on the app's settings page in the Pebble phone app.
Hub
| Setting | Default | What it does |
|---|---|---|
| Local URL | — | The http:// example URL from Maker API, with your hub's IP |
| Cloud URL | — | The https://cloud.hubitat.com example URL |
| Control Mode | Local | Which route to start on |
Device list
| Setting | Default | What it does |
|---|---|---|
| Show Read-Only Devices | On | Include sensors and meters, which display a reading but take no commands |
| Order | By name | By name, by type then name, or the hub's own order |
| Dimmer / Volume Step | 5% | How far one press of up or down moves a level (1–25%) |
Away from home
| Setting | Default | What it does |
|---|---|---|
| Cloud Access Available | On | Turn off if your hub has no cloud access. The app becomes Local-only. |
| VPN To Home Network | Off | Turn on if you use a VPN home, so Local is expected to work while away |
| Verify Hub Before Sending Token | On | The safeguard described in Security. Leave it on. |
Locks and doors
| Setting | Default | What it does |
|---|---|---|
| Allow Locks And Doors In Shortcut | Off | Lets hold-to-toggle unlock doors and open garages. Read the warning first. |
Devices it understands
Worked out from the capabilities your hub reports, most specific first.
| Capability | Shown as | Select | Up / Down |
|---|---|---|---|
Lock |
Lock | lock / unlock | lock / unlock |
GarageDoorControl, DoorControl |
Door | open / close | open / close |
WindowShade |
Shade | open / close | set position |
AudioVolume, MusicPlayer |
Volume | on/off, or mute/unmute if it has no switch | set volume |
SwitchLevel |
Dimmer | on / off | set level |
Switch |
Switch | on / off | on / off |
Momentary, PushableButton |
Button | push | — |
| anything else | Sensor | re-read | — |
Read-only devices show their most interesting reading — temperature, motion,
contact, presence, humidity, illuminance, power, battery and a few more, in that
order. Turn off Show Read-Only Devices to leave them out entirely.
What gets fetched, and when
The hub is asked for its device list once, and that list is then reused:
- First launch reads every device, works out what each one is, sends the list
to the watch and caches it. - Later launches send the cached list straight to the watch, so the menu is up
before the network is touched — then read live states and fill them in. - The cache is dropped when you choose Refresh Devices, save the settings, or
change hub or token. - States are never cached. They are read fresh every launch.
A device added in Hubitat after the list was cached will not appear until you
choose Refresh Devices. That is the design, not a bug.
Security
Your token, and public networks
The Maker API access token is a key to every device you exposed. In Local
mode it is sent to a private address like 192.168.1.10 — and on a café, hotel
or airport network, that address very often belongs to somebody else's machine.
So Local mode has to prove it is on the right network first. Before any token
moves, the app makes one token-free request to the hub's address. A real hub
identifies itself by refusing an unauthenticated caller (401/403) or by
answering JSON. Silence, a timeout, or a captive portal answering with HTML all
count as not home, and your token is never sent.
What happens then depends on your settings:
| Cloud access | VPN | Away from home |
|---|---|---|
| Yes | either | Falls back to Cloud automatically — Away - using Cloud |
| No | Yes | Stops: Not home - connect VPN |
| No | No | Stops: Not on home network |
In the last two it genuinely stops — the verdict is cached, so nothing further is
attempted. The app will not poll a network it should not be on. Refresh
Devices, switching Local/Cloud, or saving settings all re-check immediately, so
walking back in the door costs one button press.
The URL itself is checked
A token is never sent in clear text anywhere it could leave your network. A URL
is refused outright, with the reason shown on the watch, when it is:
http://to anything that is not a private address. Accepted:10.x,
172.16–31.x,192.168.x,127.x,169.254.x, a bare hostname, or a
.local/.lan/.home/.internalname. A public IP or a real domain is
not.- missing its
access_token, or nothttp(s)at all.
So pasting the cloud URL as http:// instead of https://, or pointing the
local URL at a public address, fails closed rather than quietly leaking the key
to your house.
Locks and doors
Hold-to-toggle on the device list does not act on locks, garage doors or door
controls. A long press is easy to make by accident, and unlocking a front door is
the one action here with a physical consequence — so holding select on one opens
its screen instead. The press still does something useful, and nothing
irreversible.
Allow Locks And Doors In Shortcut turns that off if you want it. Be clear
about what you are choosing: one long press on a list row can then unlock your
door or open your garage, with nothing to confirm it.
Actions do not fire late
If the watch loses Bluetooth just as you press something, that press does not sit
around waiting for the link to come back.
- A momentary blip — a second or two — resumes as you would expect, and the
press is delivered. - Anything longer than about ten seconds and the press is discarded. You
have walked away; a command you gave before losing the link is no longer a safe
statement of what you want now, and an unlock arriving minutes later behind
your back is exactly the wrong outcome.
On reconnecting after a real absence the watch says Dropped stale actions and
re-reads every device, so what you see is the state of your home now rather than
whatever it assumed before the link went down.
What this cannot protect against
Stated plainly, because security features that oversell themselves are worse than
none:
- The probe proves something at that address behaves like a hub — not that it
is yours. A hostile access point that deliberately answers JSON could still
pass it. This removes the everyday risk of a stranger's router or NAS quietly
receiving your token; it does not defeat a targeted attacker. If that is your
threat model, use Cloud away from home, or a VPN. - Local mode is plain HTTP. Hubitat's Maker API offers no local TLS, so on
your own network the token travels in clear text and anything else on that
network could read it. This is a property of the hub's API, not of this app.
If you suspect exposure, regenerate the token in the Maker API app and re-save
your settings here. - The settings page shows your token, because it holds the URL you pasted.
Anyone with your unlocked phone can read it. - The cached device list on your phone holds device names, which describe your
home. No credentials, but not nothing.
The watch itself never holds your token, never makes a network request, and
remembers only which mode you last chose.
Battery
The app is entirely event-driven. Nothing polls, and nothing runs in the
background on either device — no sensor subscriptions, no periodic refresh, no
checking in with the hub — and the phone-side code shuts down with the watch app,
so a closed app costs nothing at all. Sitting on an open menu, the only thing
scheduled is the timer that closes the app.
| Action | Cost |
|---|---|
| Launch | one read of all devices, plus the list and states to the watch |
| Open a device | one read — skipped if states were refreshed in the last 20 s |
| Send a command | the command, plus one confirming read once it settles |
| Drag a dimmer | one command, not one per step |
| Idle | nothing |
It also does not stay open — see It closes itself. That is
the single biggest saving available to a watch app, because an app left running
keeps the watch out of the low-power state its watchface sits in.
Failure paths are where a home-control app usually drains a battery, so both are
capped:
- Watch out of range of the phone. The watch stops transmitting rather than
retrying into a dead link, and resumes automatically on reconnect. A press that
did not make it is only delivered if the gap was momentary — see
Actions do not fire late. - Phone with no signal, or in airplane mode. Local requests give up after 6
seconds, and after three failures in a row the app stops trying for a minute,
failing instantly with no radio use at all. Refresh Devices, switching mode, or
saving settings clears that immediately. - A hub that answers with an error (a wrong token, say) is a settings problem, not
a signal one, so it never trips the backoff and stays visible.
Troubleshooting
| The watch says | What it means |
|---|---|
Set the local URL / Set the cloud URL |
Nothing pasted for the current mode. Check the settings page. |
URL has no access token |
The URL was pasted without its ?access_token=… part. Copy the whole line from Maker API. |
Refusing HTTP to a public address |
A http:// URL pointing somewhere off your network. Cloud URLs must be https://. |
Not on home network |
You are away, and there is no cloud route configured. Turn on Cloud Access Available and add a Cloud URL. |
Not home - connect VPN |
You are away with VPN selected — connect the VPN, then choose Refresh Devices. |
Hub unreachable - try Cloud |
Local could not reach the hub. Use the Connection row to switch to Cloud. |
Phone disconnected |
The watch has lost Bluetooth. It resumes on its own when the phone is back. |
Dropped stale actions |
The link was down long enough that a queued press was discarded rather than delivered late. States are being re-read. |
No devices exposed |
Maker API has no devices selected, or Show Read-Only Devices is off and everything you exposed is a sensor. |
Local only on the Connection row |
No usable Cloud URL, or Cloud Access Available is off. |
Cloud access is turned off |
You tried to switch to Cloud with that setting off. |
The app closed on its own. That is the inactivity timeout, not a crash — a
minute with no button pressed and it returns you to your watchface. See
It closes itself.
A device is missing. The list is cached on purpose. Choose Refresh
Devices after adding anything in Hubitat.
A device shows the wrong state. Choose Status → Select to re-read
everything, or open the device to re-read just that one.
Everything is slow on a big hub. Every launch reads all device states. Turn
off Show Read-Only Devices to cut the list down to things you can act on.
How it works
The watch holds no credentials and makes no network calls. It sends an operation
code over Bluetooth; the phone-side JavaScript owns the hub connection.
src/c/
main.c app lifecycle, routes updates to the open windows
comm.c/.h AppMessage transport, request queue, link state
devices.c/.h the device table and the wire-format parser
main_menu.c/.h devices / refresh / connection / status
device_list.c/.h the scrolling device list
device_window.c/.h one device's control screen
idle.c/.h the inactivity timeout that closes the app
theme.h colours, with monochrome fallbacks
src/pkjs/
index.js Maker API client, device classification, cache, safeguards
config.js settings page
Commands are semantic. The watch only ever sends on, off, level or
push. The phone translates each into the Maker API command that particular
device accepts, so adding a device type touches the JavaScript and one enum, not
every button handler.
Optimism, then correction. A press updates the watch immediately so the
screen never feels laggy; the phone then reads the device back once it has
settled — a second for a light, three for a lock — and pushes the real state.
Layout comes from the screen bounds, not the platform. Font sizes step with
screen width and round insets scale with the display, so a 260 px circle and a
144 px rectangle are both laid out correctly without per-model special cases.
The wire format. Devices cross in chunked records sized to whatever message
buffer the watch could allocate, which it reports at handshake along with how
many rows it can hold — 48 on the oldest hardware, 160 on the largest.
