Another USB zigbee 3.0 repeater

I got these zigbee 3.0 USB repeaters a while back. They are about $10 each on Aliexpress. They've worked really well as repeaters; I have about 7 devices using one of them, while the others have 1-2 devices they're repeating for.

In the same location, they have a higher LQI than the original TuYa USB zigbee 3.0 repeaters, or Sonoff Dongle-P flashed as a repeater. And with a reset button on the device, they're easier to reset than either the Dongle-P or the original TuYa USB repeater.

I bought these to retire all of my Dongle-P repeaters, and it has worked out well.

2 Likes

link?

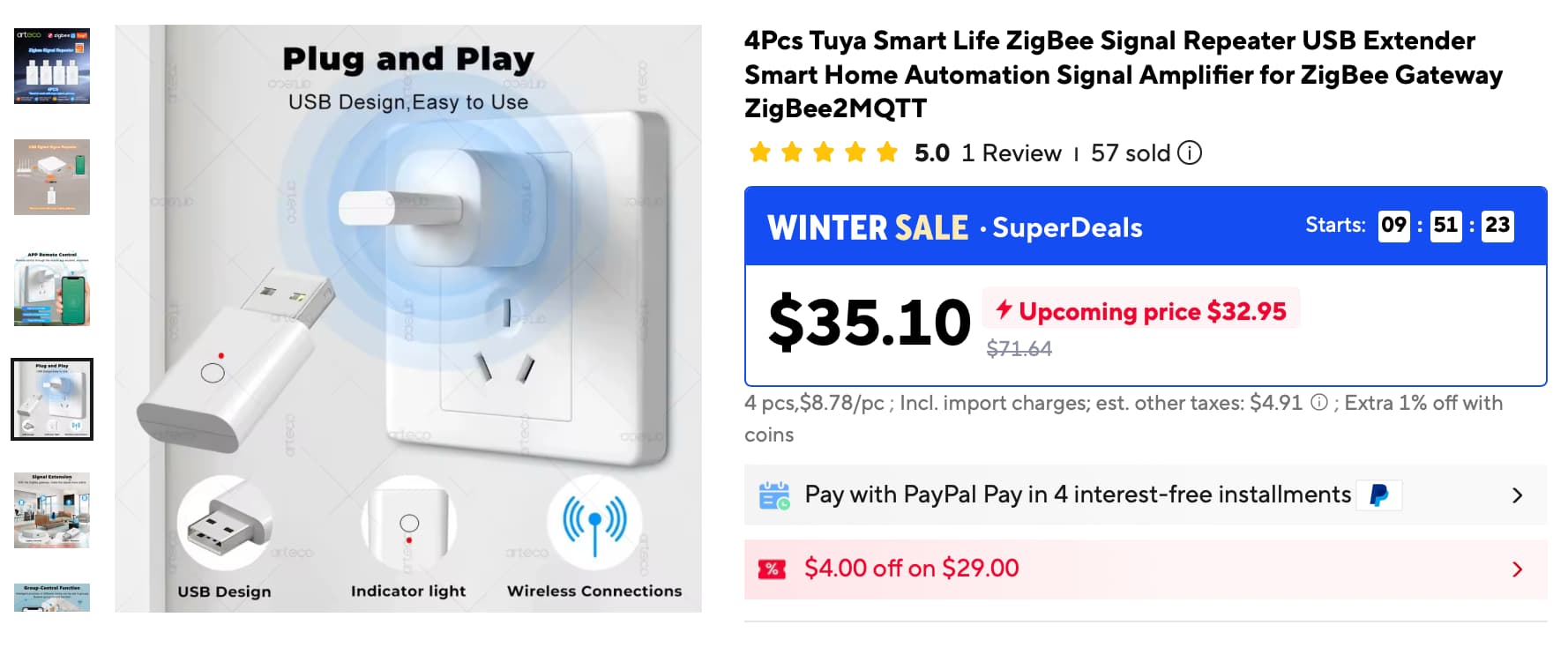

This is the one I got:

https://www.aliexpress.us/item/3256809832624899.html

I haven't seen it yet on Amazon. Will probably be there soon enough.

1 Like

Thanks for the link!

2 Likes

ive got like 4 of those (tuya vesion) and once or so a year they drop off and need to be rebooted and sometimes even re-paired if left off long enough.. i have now put usb switches behind them so i can do that.

3 Likes

I have one of the Sonoff zigbee repeater dongles that I reflashed to a repeater and it will not stay connected.
I did check the USB power supply and it is ok.
Really causes problems when it drops off!

1 Like

I have 4 of those. Three stayed connected, but not a lot of devices used them as repeaters. One of them has dropped off a lot. I think the USB power terminals were corroded, so I cleaned them, and it stayed online. I could only put the Dongle-Ps into pairing mode by flashing them, so I decided that it was not the best device to use.

Yes.
Seeing as they are a pain to use, and are not reliable, I am going to abandon mine.
Too bad as they seemed like they were solid and good, but NOT reliable!

1 Like

My P-Dongles still appear to be doing fine, still repeating, not causing problems. :man_shrugging:

The main thing I don't like is they are so large/ugly. I might replace them at some point w/something like this just because of the much better form factor of these.

@aaiyar - how do they seem in terms of range compared to the Dongle-P's? Thinking the large external antenna on the Dongles should be a range advantage.

1 Like

In my house (L-shape, 2500 sq ft, two detached structures), these work better.

1 Like

I'm very similar, about 2500sqft, single story ranch w/an addition on one end which turned it into a bit of an L.

OK, dammit, I might go ahead and give these a try... :slight_smile:

1 Like

Oops, hard to tell from the pics, those are USB-A, correct? NVM, confirmed USB-A.

1 Like

Yup. Usb-A

1 Like

I have 3 of these and 4 of the OG smaller ones.
They all seem to work well with good tx/rx specs.
I have had to replace the original ones with these as 2 have failed.
Just replaced an OG one 2 days ago after a few power interruptions.

Are you replacing the dongles like the ones you flashed for me? The reason I ask is I have one of those in service and nothing ever uses that dongle to repeat. The devices I got them for passes them up and uses a Third Reality Night light that is further away. I wonder if there might be better for those outside devices.

Also, I may be replacing my three Linptech MMWave sensors with the Aqara FP300 so I need something to pick up the slack of those. Sounds like these may be a good option.

1 Like

Yup. Now, they definitely work as repeaters in my mesh. But these are better.

1 Like

Press the Sort button to get the lowest prices. I can get them up for $4.85 each on Ali Express right now. I've seen these, but I have so many mains repeaters now it is not something I really need.

https://www.aliexpress.us/item/3256808862741444.html?spm=a2g0o.productlist.main.1.21d5G1vOG1vOkr&algo_pvid=c1c5c5e7-ddeb-4810-92cd-dc342152a54d&algo_exp_id=c1c5c5e7-ddeb-4810-92cd-dc342152a54d-34&pdp_ext_f={"order"%3A"39"%2C"eval"%3A"1"%2C"fromPage"%3A"search"}&pdp_npi=6%40dis!USD!10.54!4.85!!!73.07!33.62!%402103129f17682295151233956e005e!12000047710100540!sea!US!1898826754!X!1!0!n_tag%3A-29919%3Bd%3A26bcf447%3Bm03_new_user%3A-29895%3BpisId%3A5000000199069779&curPageLogUid=SwI6L5dgnoww&utparam-url=scene%3Asearch|query_from%3A|x_object_id%3A1005009049056196|_p_origin_prod%3A

Did you put these in both HA and HE?

Yes, z2m and HE.

Great. I will need both. Did they join automatically as repeaters in both?
